Experiments on the Distribution of Fuel in Fuel Sprays (1932)
NASA Technical Reports Server (NTRS) · leaf 25

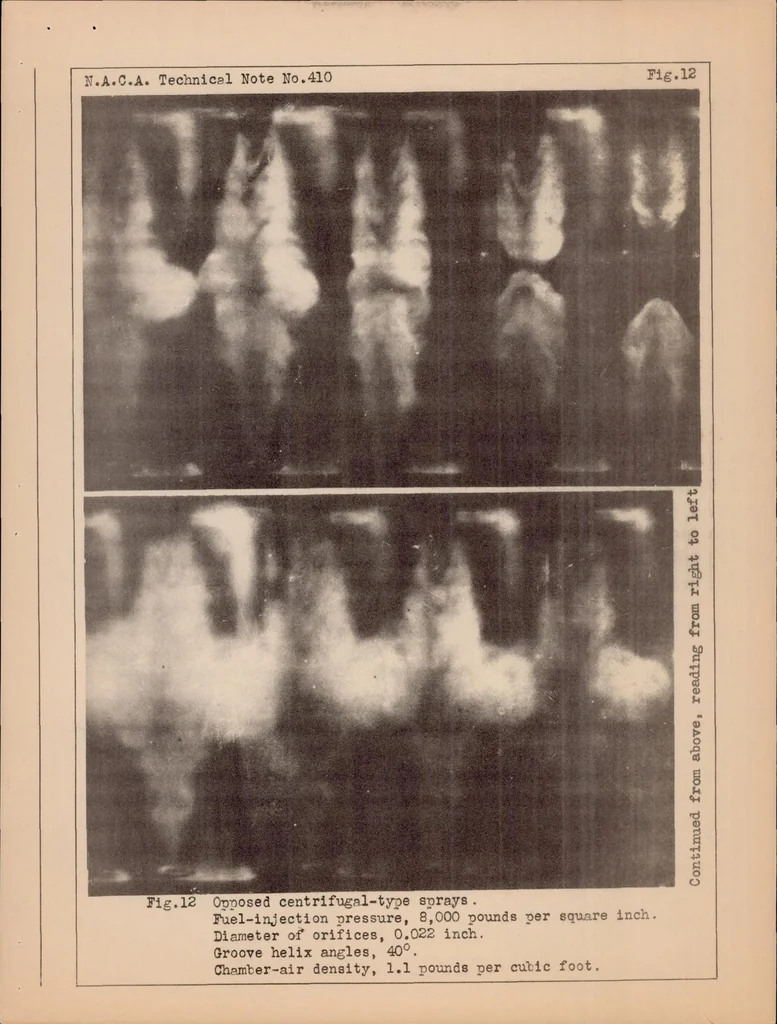

N.A.C.A. Technical Note No*410 Fig. Fig.12 Opposed centrifugal-type sprays. Fuel-injection pressure, 8,000 pounds per square inch. Diameter of orifices, 0.022 inch. Groove helix angles, 40^. Chamter-air density, 1.1 pounds per culic foot.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
