Wind tunnel research comparing lateral control devices, particularly at high angles of attack VIII : straight and skewed ailerons on wings with rounded tips (1933)

NASA Technical Reports Server (NTRS) · leaf 15

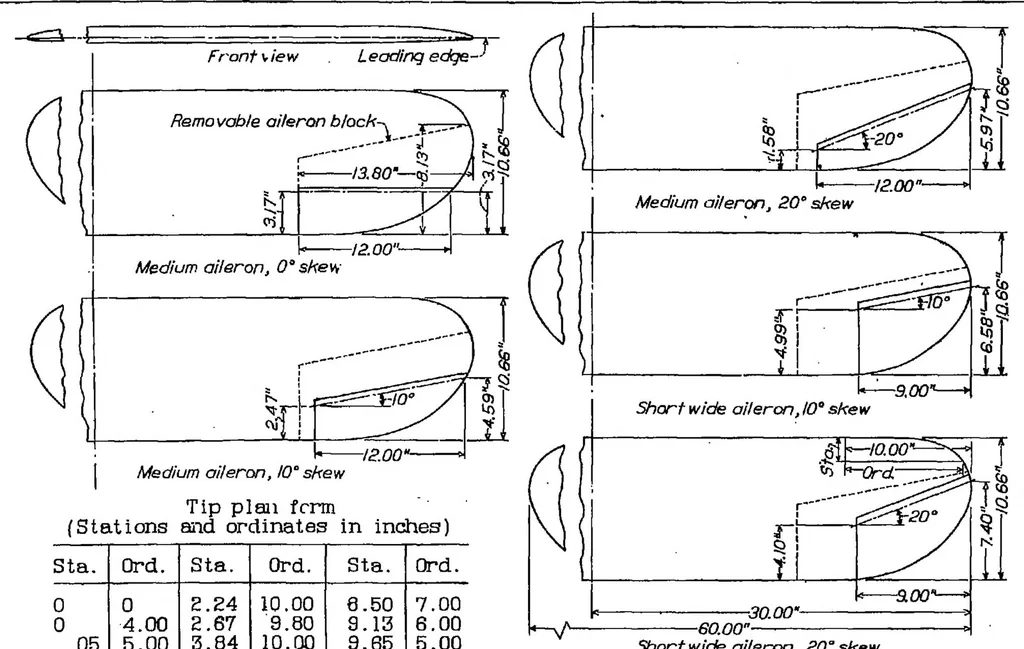

An illustration from Wind tunnel research comparing lateral control devices, particularly at high angles of attack VIII : straight and skewed ailerons on wings with rounded tips, 1933, leaf 15 — Short wide aileron, 20" skew Figure 2-Details of ailerons on Clark Y wing with tip No.2 oq ■
