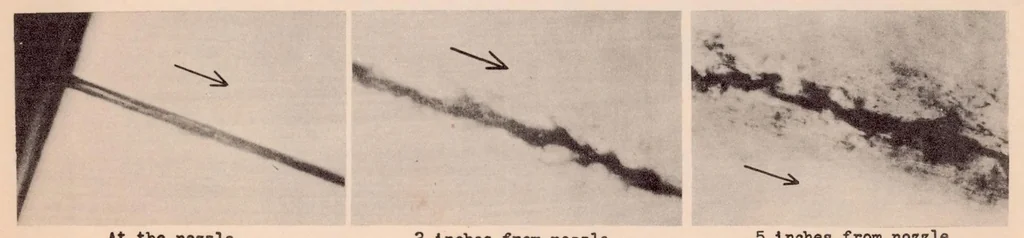

o . • CD I i s o • Air density, 0.00526 atmosphere Air density, 1.0 atmosphere Air density. 13.3 atmospheres Injection pres8\ire, 1000 llD./sq.in* Distance from nozzle, 1.5 inches Discharge orifice diameter. 0.008 inch Fig. 6 Photomicrographs showing the effect of the density of the air into which… … At the nozzle 2 inches from nozzle 5 inches from nozzle Injection pressure, 1000 l\)./sq.in. Air density, 1 atmosphere 0^ Discharge orifice diameter, 0.014 inch Fig. 7 Photomicrographs showing tne atomization process at different distances from the nozzle, X 10
