Preliminary Photomicrographic Studies of Fuel Sprays (1932)
NASA Technical Reports Server (NTRS) · leaf 9

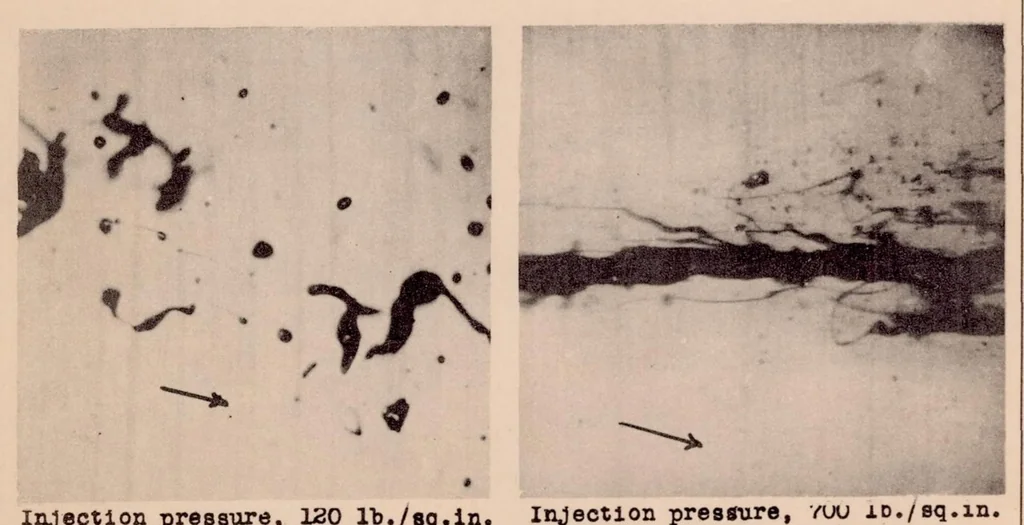

1 TSl.k.C.X. Technical Note No. 424 y J Injection press-ore, 550 Ib./sq.in. Injection pressure, 250 Ib./sq.in, Orifice diameter, 0.020 inch Orifice diameter, 0.014 inch Distance from nozzle, 5 inches Distance from nozzle, 5 inches … Injection pressiire, 120 Ib./aq.in. Injection pressure, /uu lo./sq.m. Orifice diameter, 0.020 inch Orifice diameter, 0.020 inch Distance from nozzle, 7.5 inches Distance from nozzle, 1.5 inches Fig. 2 Photomicrographs of fuel sprays showing the formation and breakdown of ligaments, X 10. illl…NASA Technical Reports Server (NTRS)
