The calculated effect of trailing-edge flaps on the take-off of flying boats (1934)
NASA Technical Reports Server (NTRS) · leaf 17

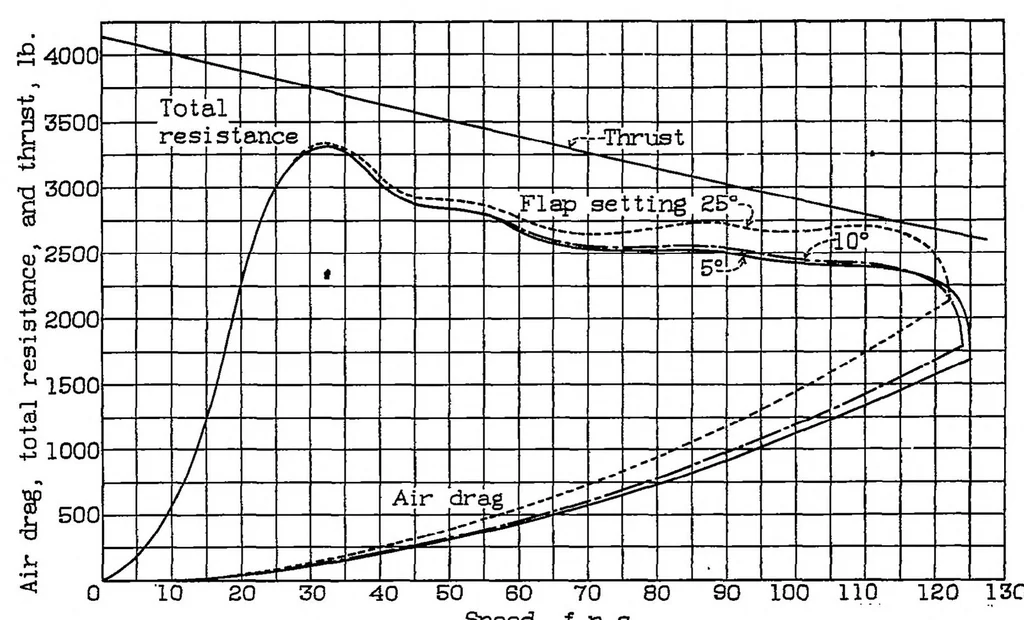

Figs. 3,4 N.A.C.A. Technical Note No.510 … Speed, f.p.s. Figure 3.- Effect of flaps on tine take-off resistance of seaplane B,using, . , for each flap setting,the wing setting giving minimum total re- sistance A 4000 40 50 60 70 80 90 100 110 120 130 30 10 20 Speed, f.p.s. Figure 4.-Effect of flaps on the take-off resistance of seaplane A…NASA Technical Reports Server (NTRS)
