Notes on the calculation of the minimum horizontal tail surface for airplanes equipped with wing flaps (1937)
NASA Technical Reports Server (NTRS) · leaf 22

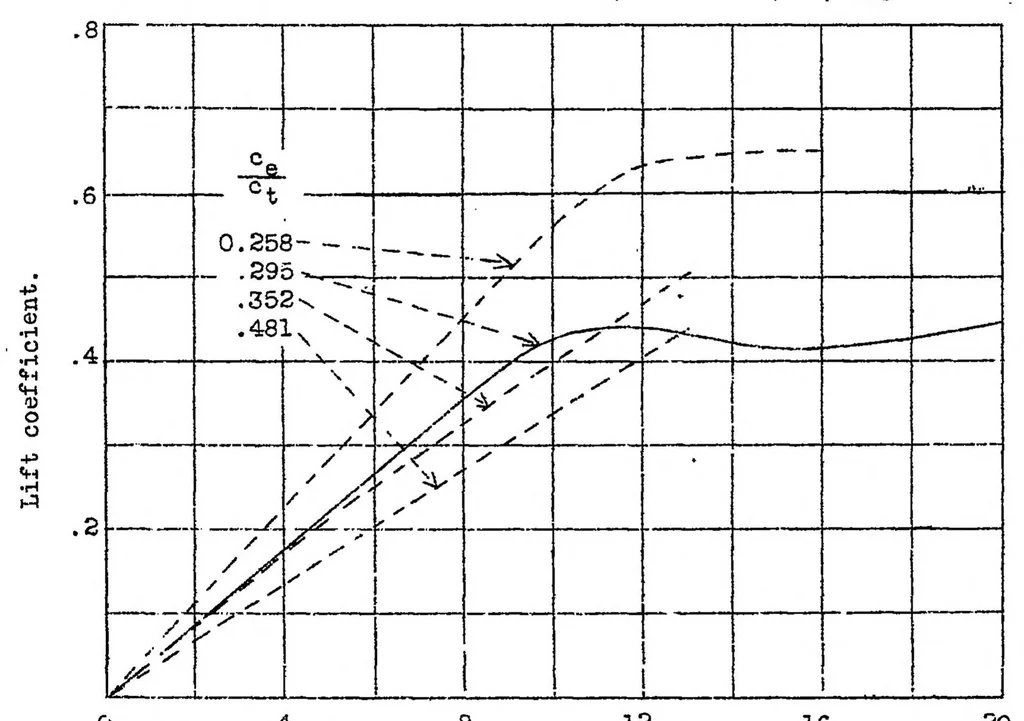

N.A.C.A. Technical Not6 Ho. 597 Pig.3 > Jata from reference 5, aspect ratio, 3.0 " " "6, « " . 4.3 … 0 4 8 12 16 20 £ngle of attack, degrees. Figure 3.- Typical tail-surface elevator-free lift c-urves (.ref erences 5 and 6) .NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
