Charts expressing the time, velocity, and altitude relations for an airplane diving in a standard atmosphere (1937)
NASA Technical Reports Server (NTRS) · leaf 13

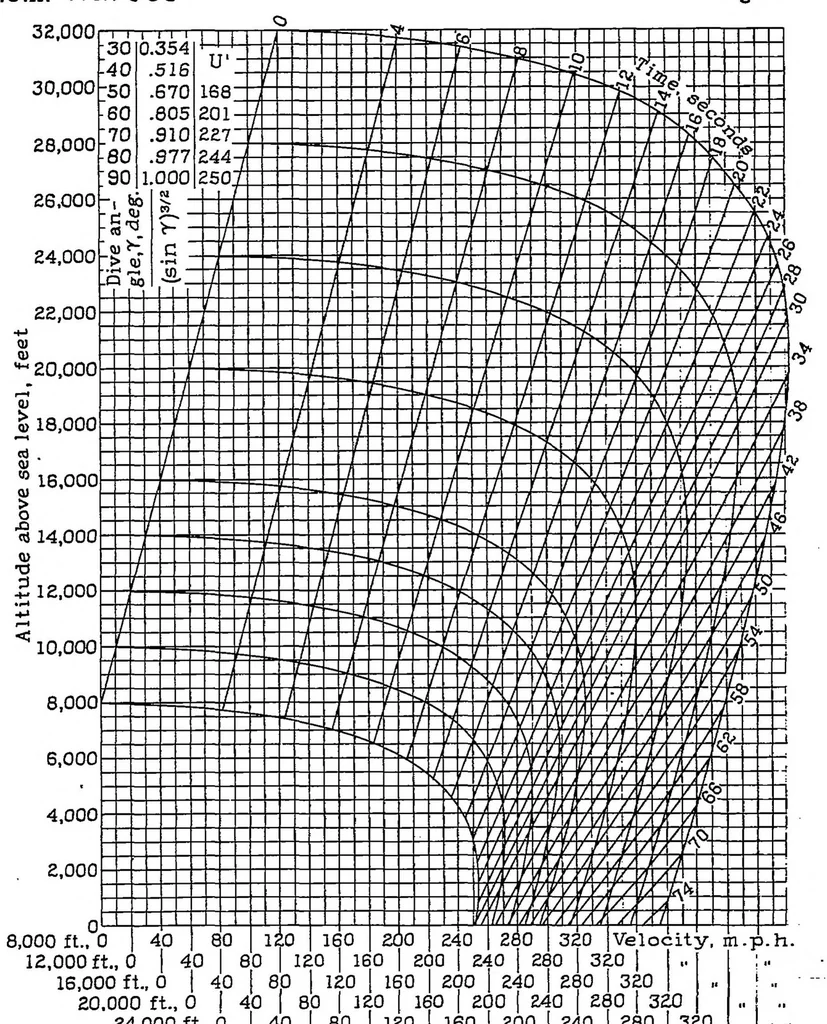

N.A.C.A. T. N. 599 Fig. 3 … 24,000 ft., 0 | 40 | 80 | ISO | 160 [ 200 [ 240 [ 280 | 320 28,000 ft., 0 | 40 | 80 | 120 i 160 | 200 | 240 | 280 j 320 32,000 ft., 0 40 80 120 160 200 240 280 320 Figure 3.- Time-altitude-velocity relations for airplanes diving in a standard atmosphere. U = 250 m.p.h.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
