Discharge characteristics of a double injection-valve single-pump injection system (1937)
NASA Technical Reports Server (NTRS) · leaf 13

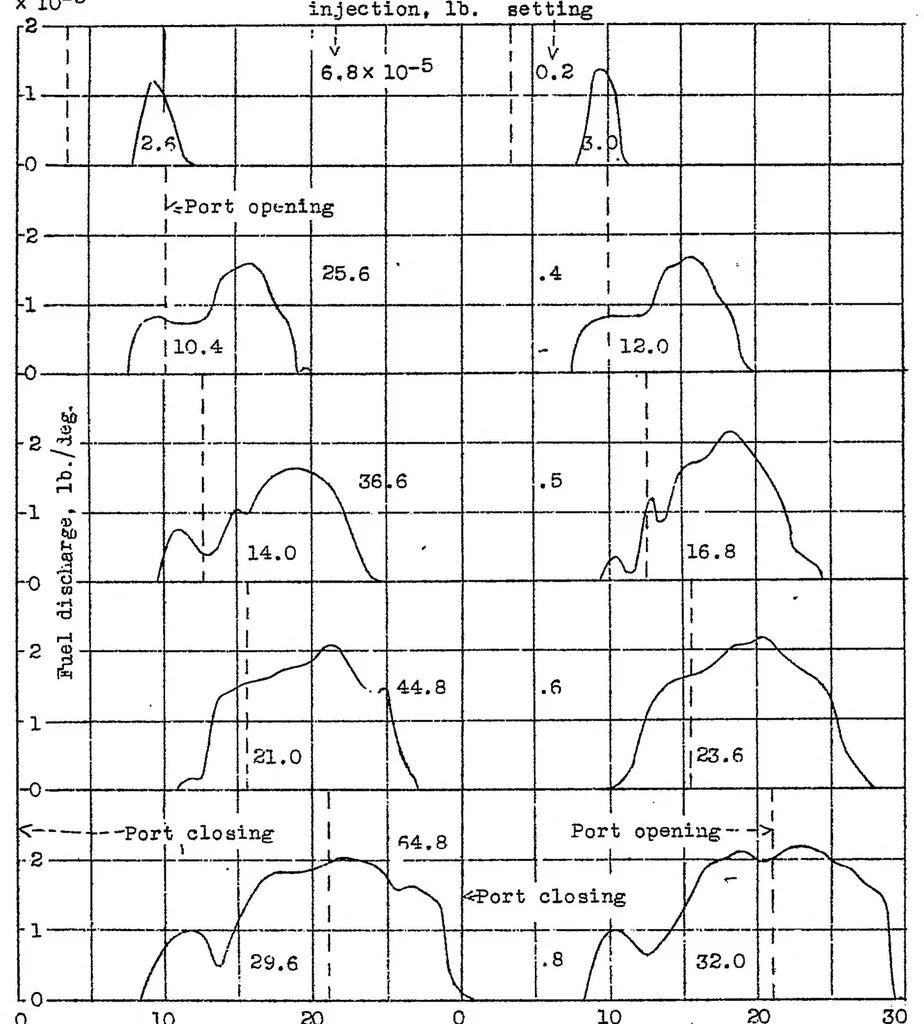

N.A.C.A. Technical Note No. 600 Pig. 3 5 Weight pel' Throttle … 0 10 20 0 10 20 30 Pump rotation, deg. Injection valve 1 Injection valve 2 Figure 3.- Effect of throttle setting on the discharge characteristics of a double-valve injection system. Pump speed, 750 r.p.m.; valve- opening pressure, 3,000 lTD./sq.in.; orifice diameter, 0.022 in.,* branch tubes of…NASA Technical Reports Server (NTRS)
