Discharge characteristics of a double injection-valve single-pump injection system (1937)
NASA Technical Reports Server (NTRS) · leaf 17

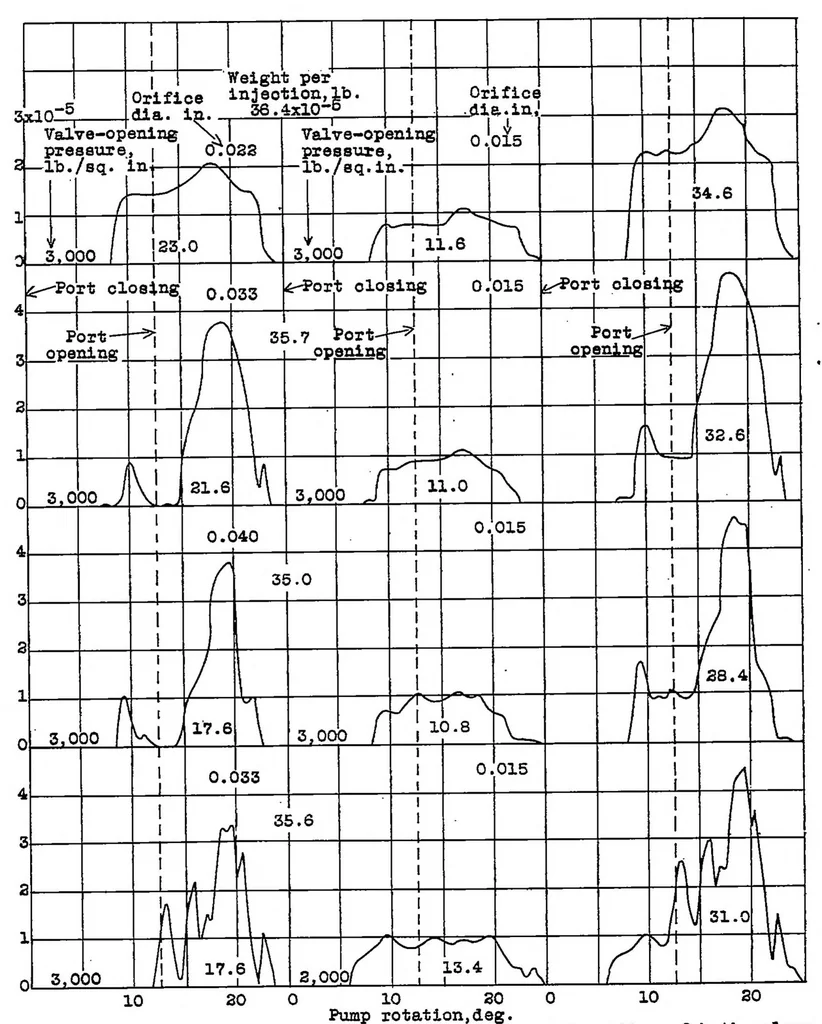

Fig. 7 C.A. Teohnical Note No. 600 … Pump rotation,deg. Summation of both valves. Injection valve 1. Injection valve 3. Figure 7.- Effect of unequal orifice diameters on the discharge characteristics of a double-valve injection system. Pump speed, 750 r.p.m.j throttle setting, 0.5; branoh tubes of equal lengths.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
