Discharge characteristics of a double injection-valve single-pump injection system (1937)
NASA Technical Reports Server (NTRS) · leaf 18

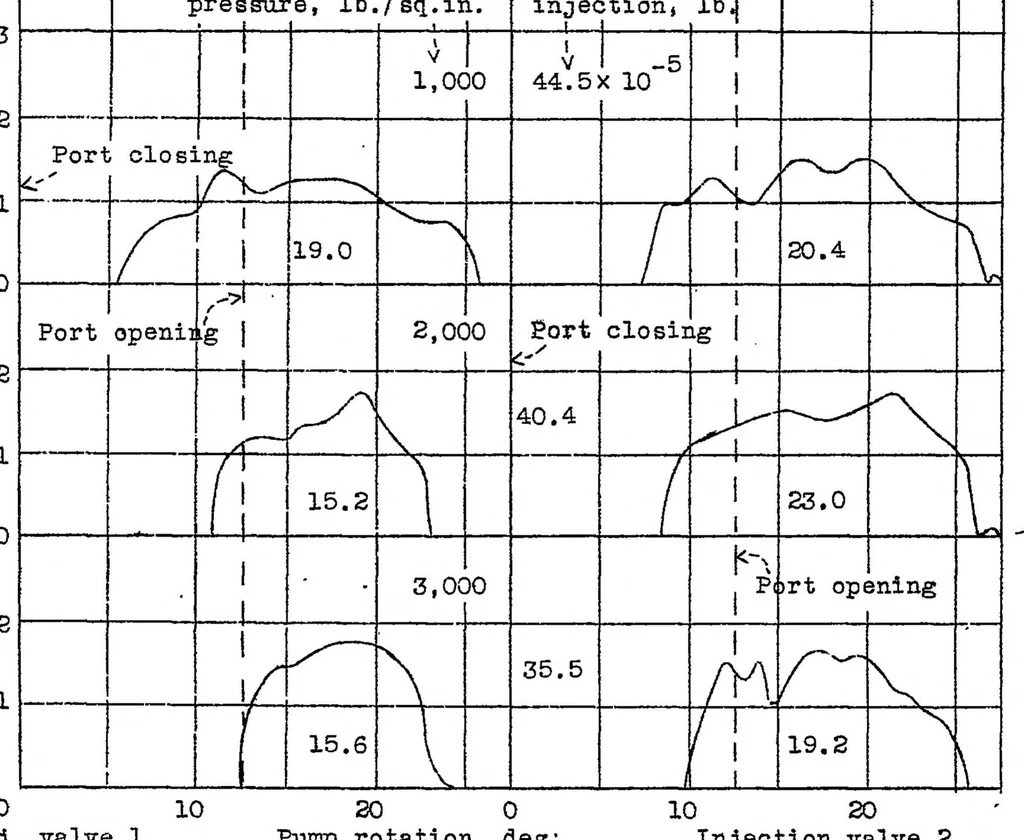

N.A.C.A. Technical Note Ho. 600 Fig. 8 4x 10"5 ~i I 1 1 Weight perl1 Valve-opening pressure, lb./sq.in. … Inj. valve 1 Pump rotation, deg; Injection valve 2 "Branch-tu.De, 11 in. Branch-tube, 36 1/ 4 in. Figure 3.- Effect of valve-opening pressure on the discharge charcter- istics of a double-valve injection system using branch tubes of unequal lengths. Pump speed, 750 r.p.m.; orifice diameter, 0.022…NASA Technical Reports Server (NTRS)
