Discharge characteristics of a double injection-valve single-pump injection system (1937)
NASA Technical Reports Server (NTRS) · leaf 20

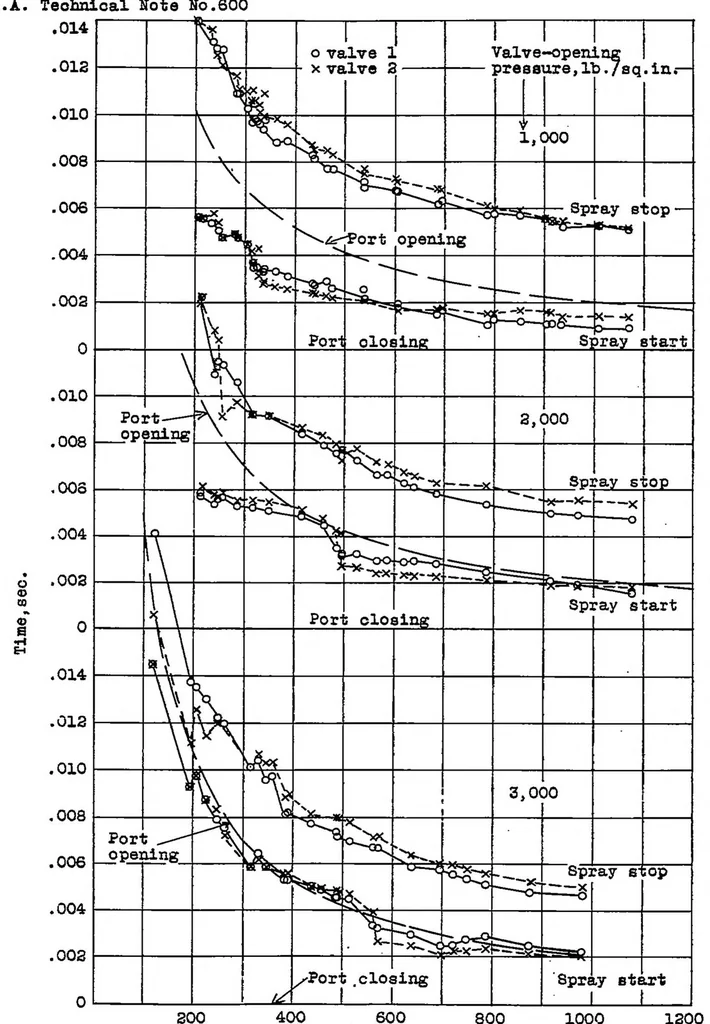

N.A.C.A. Technical Note No.600 Fig.10 … 300 400 600 800 1000 1300 Pump speed,r.p.m. Figure 10.- Effect of pump speed and valve-opening pressure on the time lag for spray start and stop for a double-valve injection system using branch tubes of unequal lengths. Orifice diameter, 0.032 in.; throttle setting, o.5; length of branch tube to…
