Full-scale Wind-tunnel and Flight Tests of a Fairchild 22 Airplane Equipped with External-airfoil Flaps (1937)

NASA Technical Reports Server (NTRS) · leaf 26

An illustration from Full-scale Wind-tunnel and Flight Tests of a Fairchild 22 Airplane Equipped with External-airfoil Flaps, 1937, leaf 26

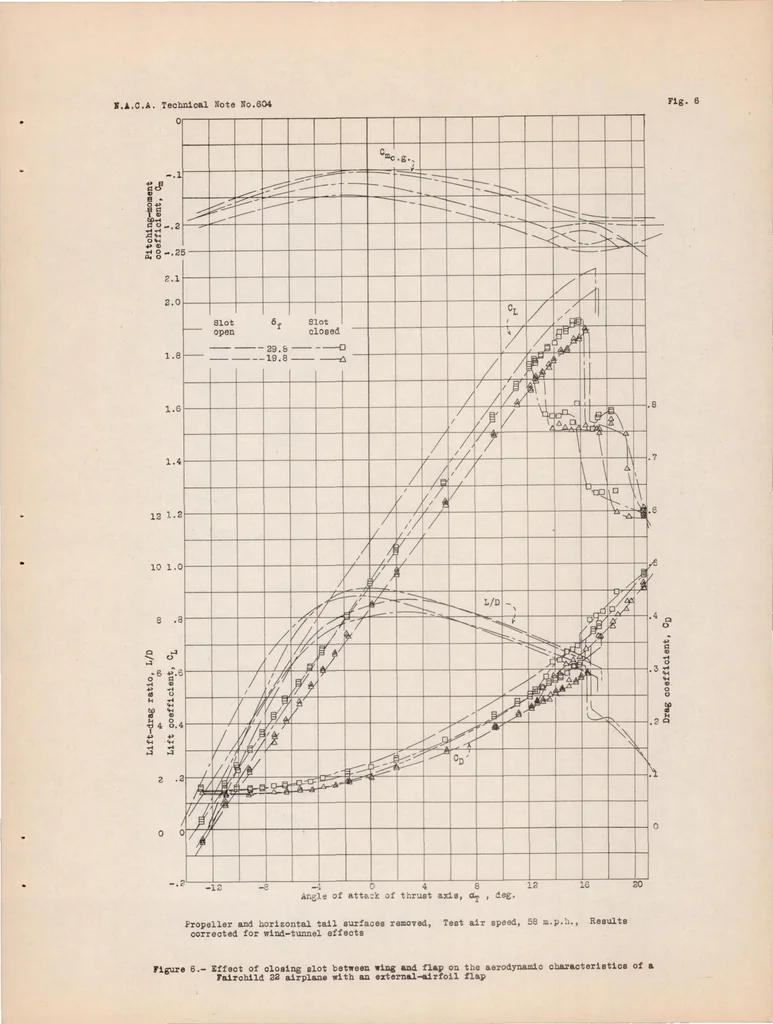

Fig. 6 K.A.C.A. Technical Note No.604 Figure 6.- Effect of closing slot between wing and flap on the aerodynamic characteristics of a Fairchild 22 airplane with an external-airfoil flap
