Pressure drop in tubing in aircraft instrument installations (1937)
NASA Technical Reports Server (NTRS) · leaf 30

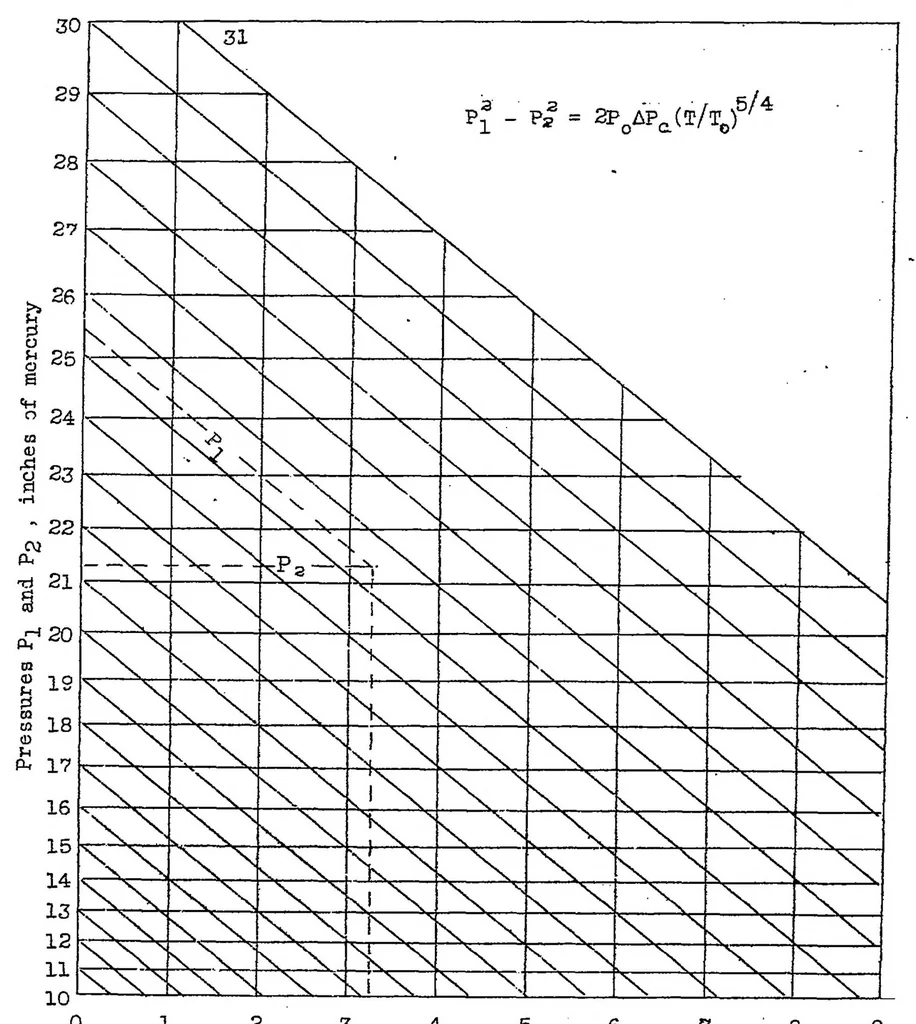

tf.A.C.A. Technical Note No. 593 Fig. … 5 6 5/4 APC(T/T0) .inches of mercury Figure 4.- Chart for obtaining true pressure oLrop. APC is computed by using the chart in Figure. 3, (t/to)5/^= is obtained from Table IV - Enter with the inlet pressure p, on the diagonals and £?c(t/t^5/4 on the abscissa axis. The intersection indicates the…
