Hydrodynamic and Aerodynamic Tests of a Family of Models of Seaplane Floats with Varying Angles of Dead Rise - N.A.C.A. Models 57-A, 57-B, and 57-C (1939)

NASA Technical Reports Server (NTRS) · leaf 16

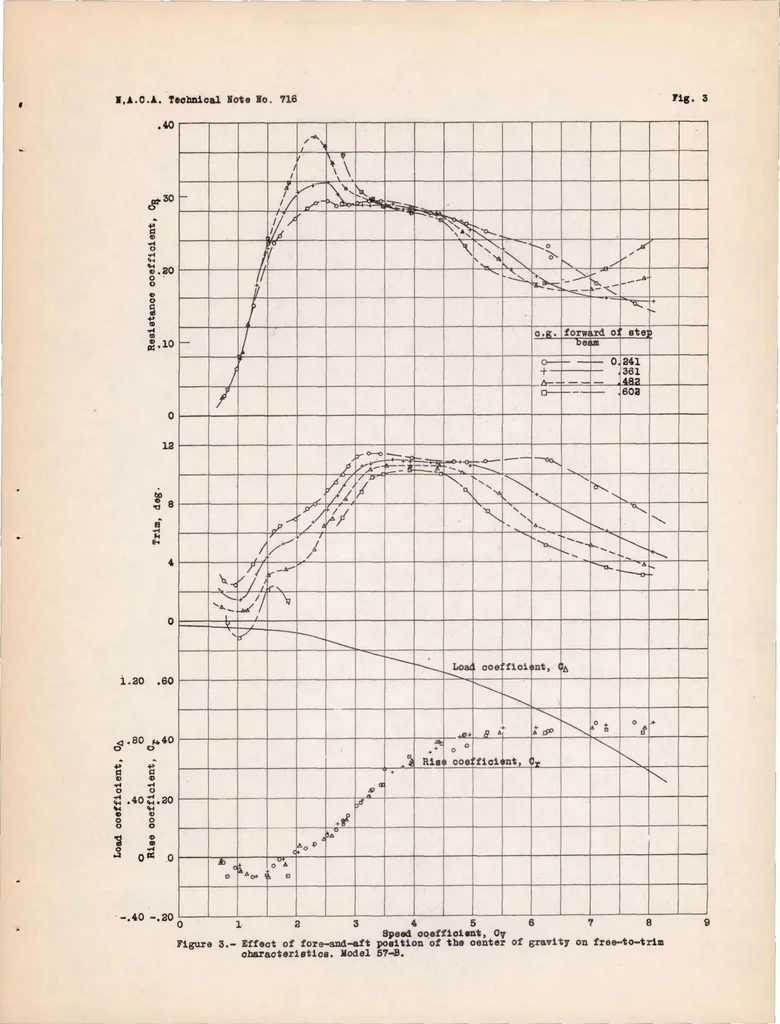

An illustration from Hydrodynamic and Aerodynamic Tests of a Family of Models of Seaplane Floats with Varying Angles of Dead Rise - N.A.C.A. Models 57-A, 57-B, and 57-C, 1939, leaf 16 — 1,1.C.A. Technical Note Ho. 716 Jig. 3 .40 -.40 -.30 0 13345678 Speed coefficient, Cy Figure 3.- Effect of fore-and-aft position of the center of gravity on free-to-trim characteristics. Model 57-B.
