Tidewater and Weather-exposure Tests on Metals Used in Aircraft (1939)

NASA Technical Reports Server (NTRS) · leaf 36

An illustration from Tidewater and Weather-exposure Tests on Metals Used in Aircraft, 1939, leaf 36

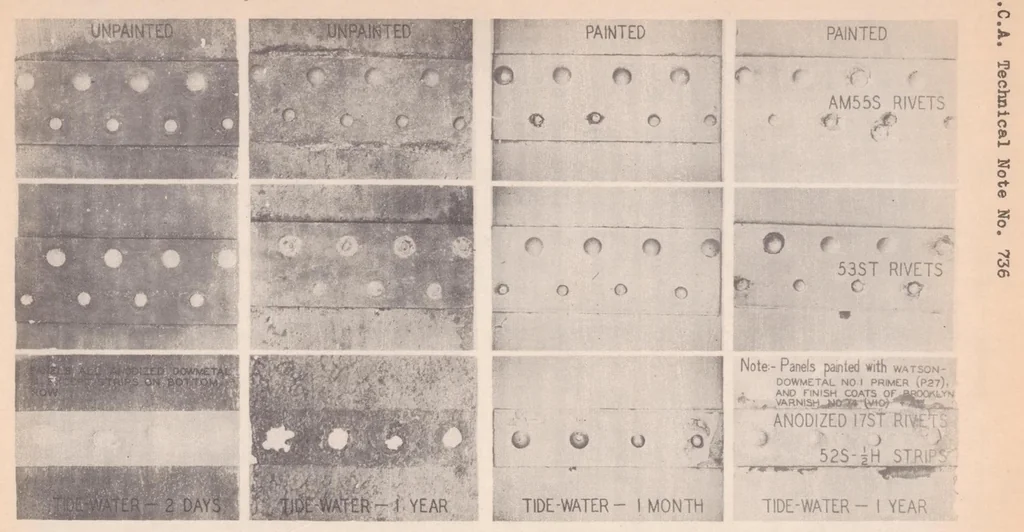

» … Figure 7,- Rivets on Dowmetal U panels exposed to tidewater. The AM55S rivets proved far superior to the others and the panels on which they were used were likewise the least attacked. The effectiveness of the paint coatings in preventing attack is noteworthy, x Vz ft

NASA Technical Reports Server (NTRS)

Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
