A Comparison of the Results from General Tank Tests of 1/6- and 1/12-full-size Models of the British Singapore IIC Flying Boat (1942)
NASA Technical Reports Server (NTRS) · leaf 16

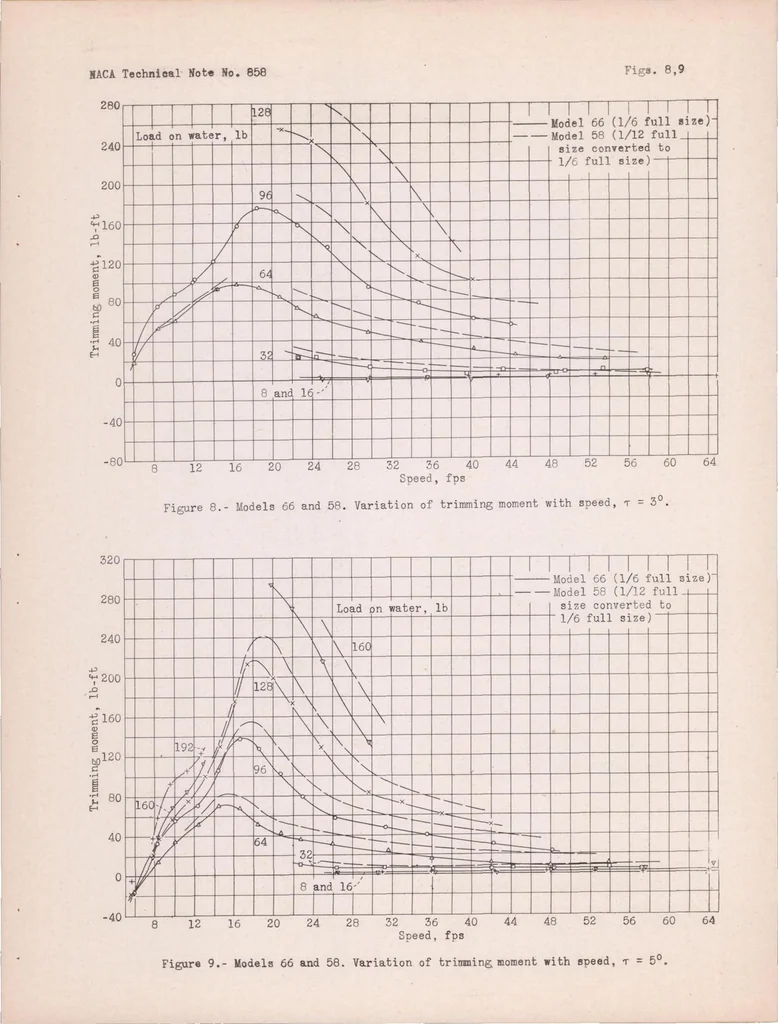

Figs. 8,9 MACA Technical Note No. 858 280 Figure 8.- Models 66 and 58. Variation of trimming moment with speed, t - 3°. Figure 9.- Models 66 and 58. Variation of trimming moment with speed, t = 5C
