A Comparison of the Results from General Tank Tests of 1/6- and 1/12-full-size Models of the British Singapore IIC Flying Boat (1942)
NASA Technical Reports Server (NTRS) · leaf 18

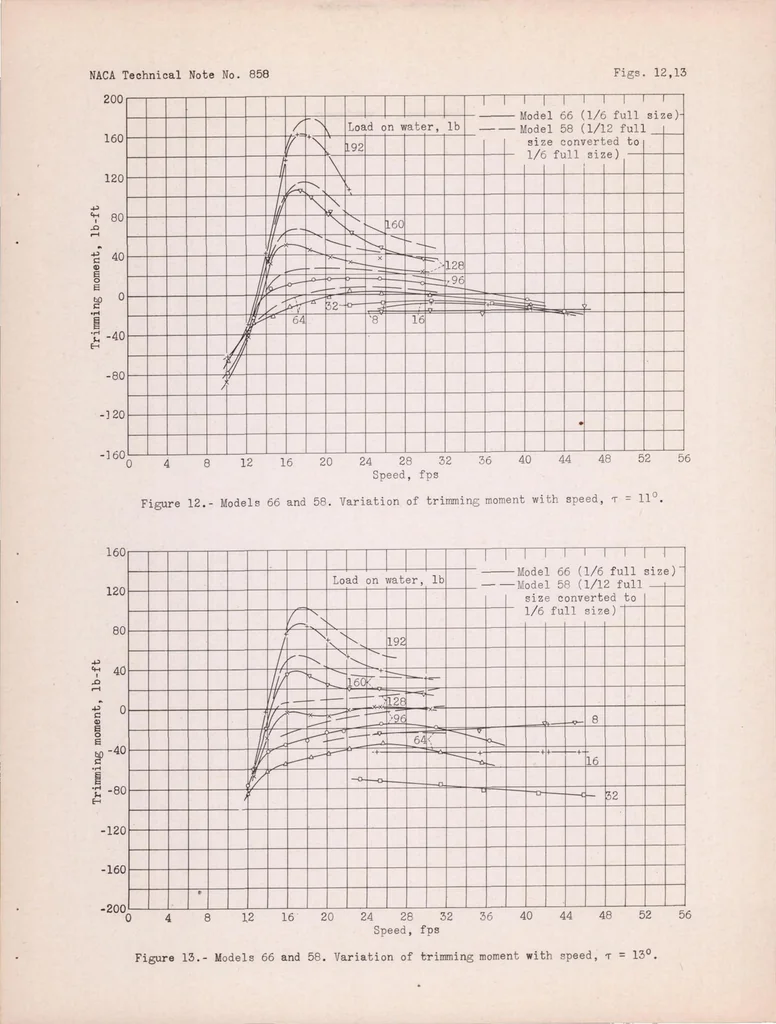

Figs. 12,13 NACA Technical Note No. 858 200 Figure 12.- Models 66 and 58. Variation of trimming moment with speed, t - 11°. Figure 13.- Models 66 and 58. Variation of trimming moment with speed, t - 13°.
