Effect of Variation in Diameter and Pitch of Rivets on Compressive Strength of Panels with Z-section Stiffeners : Panels that Fail by Local Buckling and Have Various Values of Width-to-thickness Ratio for the Webs of the Stiffeners (1948)

NASA Technical Reports Server (NTRS) · leaf 21

An illustration from Effect of Variation in Diameter and Pitch of Rivets on Compressive Strength of Panels with Z-section Stiffeners : Panels that Fail by Local Buckling and Have Various Values of Width-to-thickness Ratio for the Webs of the Stiffeners, 1948, leaf 21

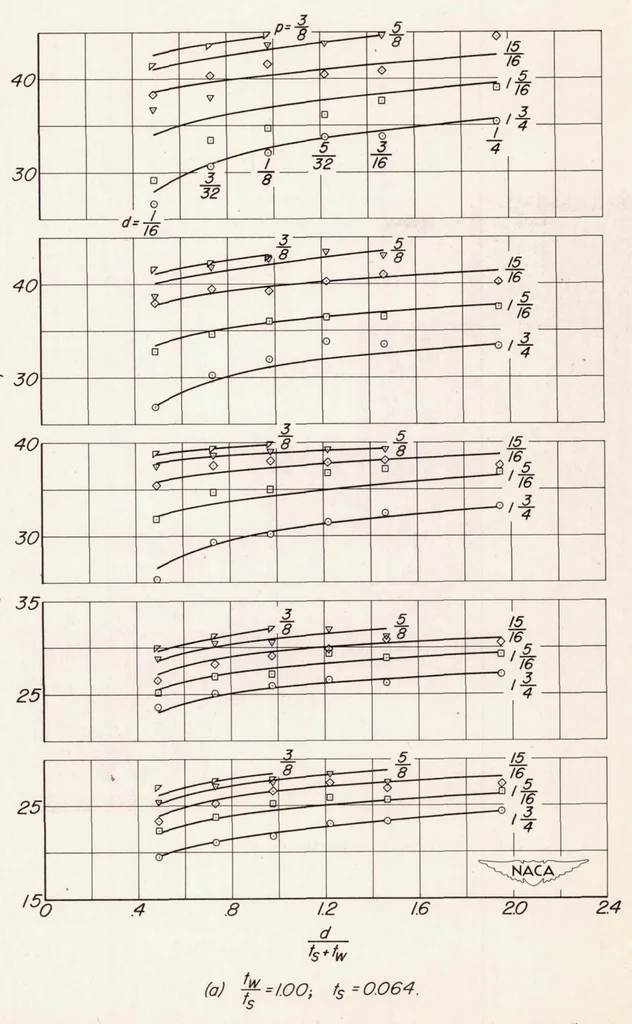

MCA TN No. 1737 20 … Figure 3-Variation in compressive strength of panels with rivet diameter.
