Effects of Some Primary Variables of Rectangular Vortex Generators on the Static-pressure Rise Through a Short Diffuser (1952)

NASA Technical Reports Server (NTRS) · leaf 19

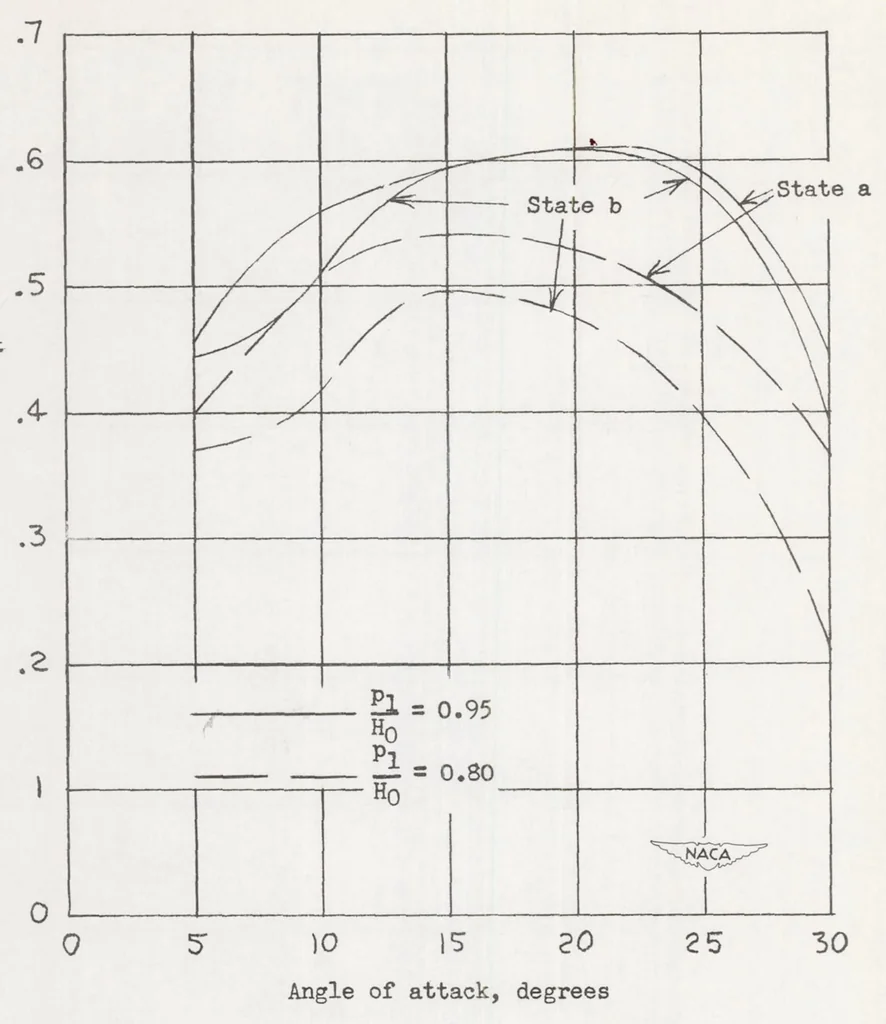

An illustration from Effects of Some Primary Variables of Rectangular Vortex Generators on the Static-pressure Rise Through a Short Diffuser, 1952, leaf 19 — 18 NACA RM L52B13 … (*- Figure 5*- Effect of vortex-generator angle of attack (r- = 2.85; 5* — = 7.3; - = 0.5; — = O.OO65V dl 5*i
