Effects of Some Primary Variables of Rectangular Vortex Generators on the Static-pressure Rise Through a Short Diffuser (1952)

NASA Technical Reports Server (NTRS) · leaf 20

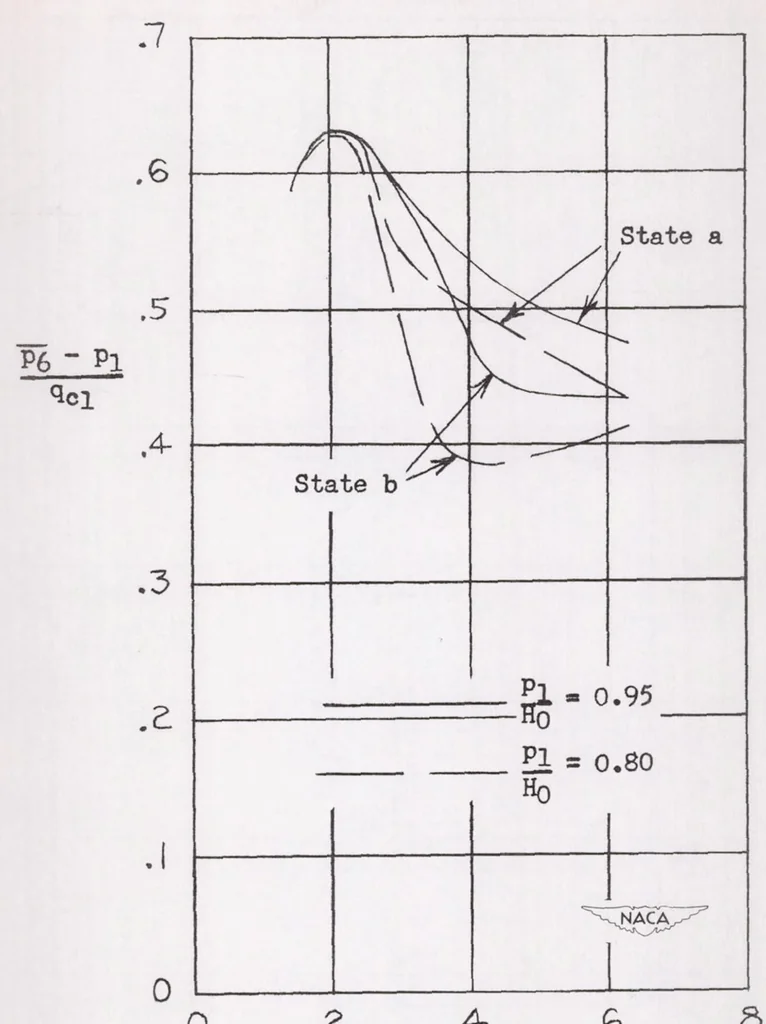

An illustration from Effects of Some Primary Variables of Rectangular Vortex Generators on the Static-pressure Rise Through a Short Diffuser, 1952, leaf 20 — NACA RM L52B13 19 … 0 £ 4- G 2> Spacing, s/b o icy Figure 6.- Effect of vortex-generator spacing / = 7-3; 5*n a = 15°; — = 0.0065 dl y
