Comparison of the Aerodynamic Characteristics at Transonic Speeds of a Plane Wing and a Cambered and Twisted Wing, Both Having 45 Degrees of Sweepback and an Aspect Ratio of 6 (1953)

NASA Technical Reports Server (NTRS) · leaf 29

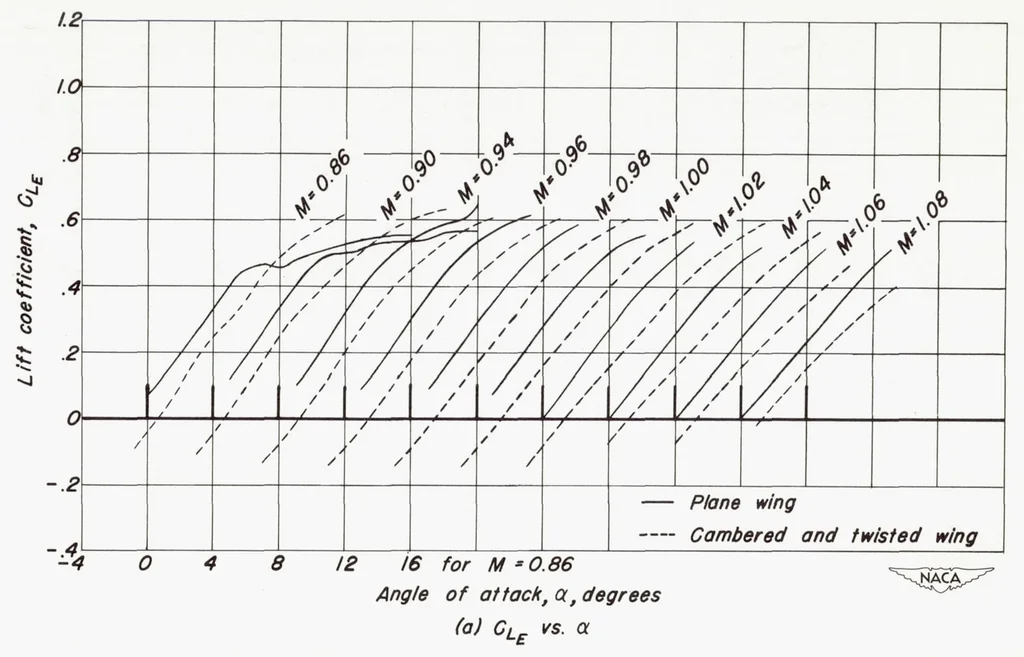

An illustration from Comparison of the Aerodynamic Characteristics at Transonic Speeds of a Plane Wing and a Cambered and Twisted Wing, Both Having 45 Degrees of Sweepback and an Aspect Ratio of 6, 1953, leaf 29 — ro co … cigure 8.— The aerodynamic characteristics for the two wings at various Mach numbers, based upon exposed—wing toads and tot at-wing area.
