Comparison of the Aerodynamic Characteristics at Transonic Speeds of a Plane Wing and a Cambered and Twisted Wing, Both Having 45 Degrees of Sweepback and an Aspect Ratio of 6 (1953)

NASA Technical Reports Server (NTRS) · leaf 30

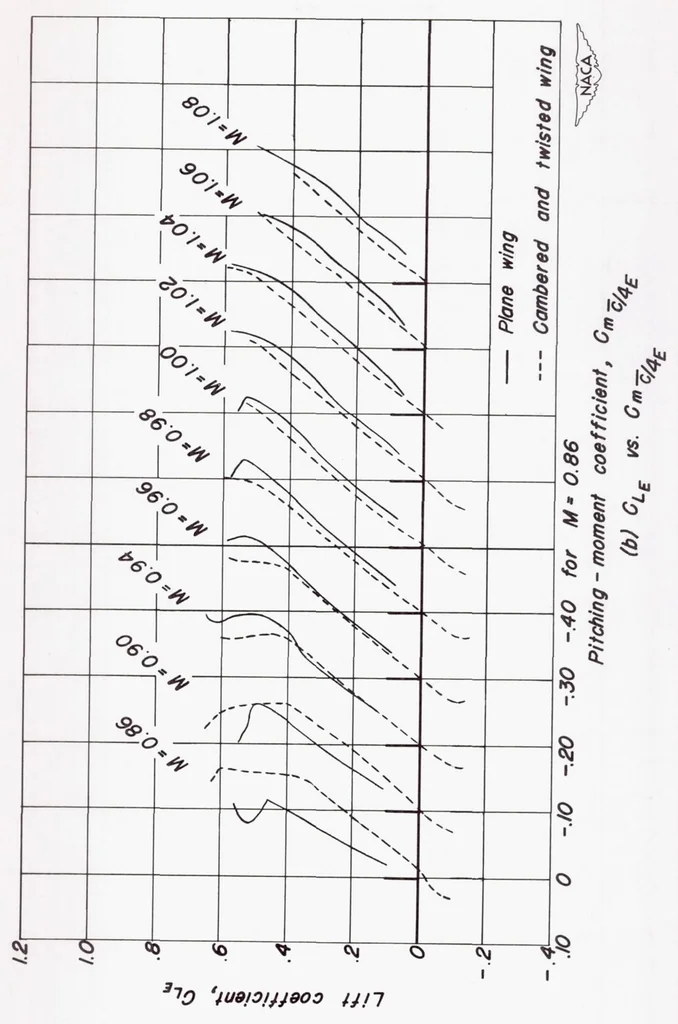

An illustration from Comparison of the Aerodynamic Characteristics at Transonic Speeds of a Plane Wing and a Cambered and Twisted Wing, Both Having 45 Degrees of Sweepback and an Aspect Ratio of 6, 1953, leaf 30
NACA RM A53B16 CONFIDENTIAL 29 … CONFIDENTIAL
