Comparison of the Aerodynamic Characteristics at Transonic Speeds of a Plane Wing and a Cambered and Twisted Wing, Both Having 45 Degrees of Sweepback and an Aspect Ratio of 6 (1953)

NASA Technical Reports Server (NTRS) · leaf 33

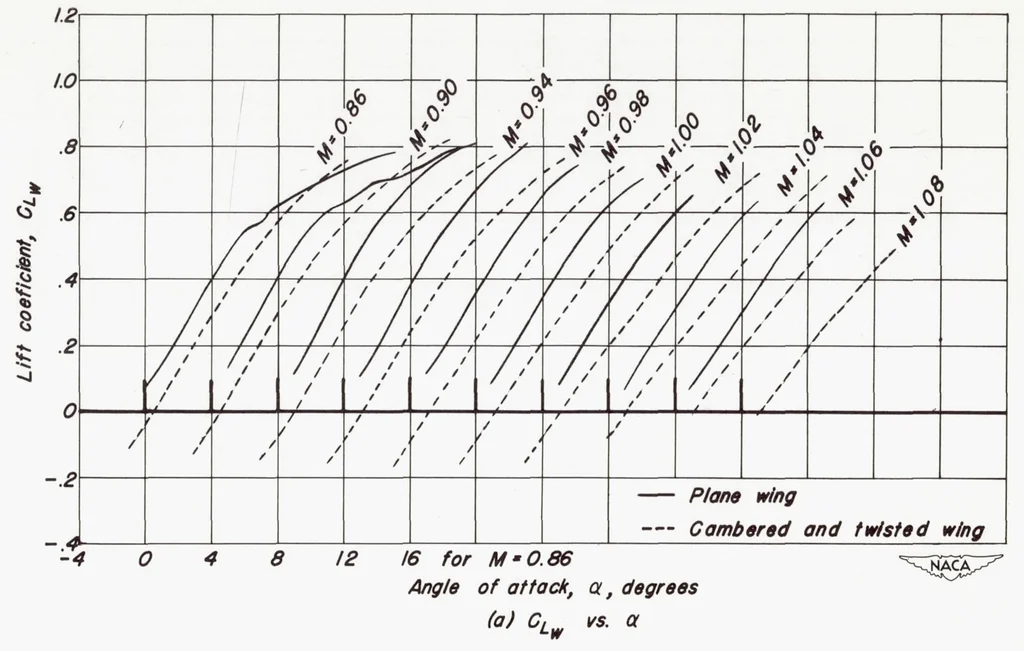

An illustration from Comparison of the Aerodynamic Characteristics at Transonic Speeds of a Plane Wing and a Cambered and Twisted Wing, Both Having 45 Degrees of Sweepback and an Aspect Ratio of 6, 1953, leaf 33 — Ou … Figure 10.— The aerodynamic characteristics of the two wings at various Mach numbers, based upon exposed—wing loads plus load over fuselage in vicinity of the wing.
