Effectiveness of a Turbojet Tubular Combustor in Screening the Turbine from Foreign Objects (1955)
NASA Technical Reports Server (NTRS) · leaf 16

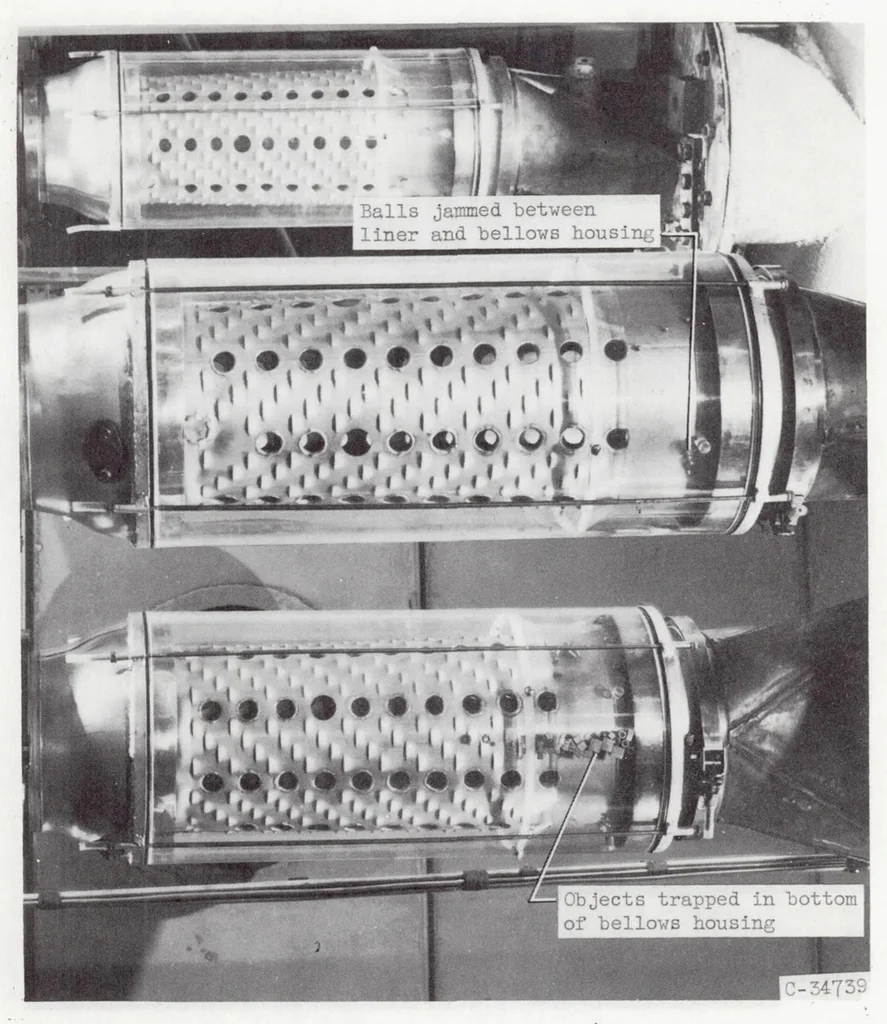

MCA EM E55E16 16 … Figure 6. - Standard combustor (coni'iguration a) showing disposition of objects after air flow was shut off. (Combustor is in middle; images of top and bottom appear in mirrors.)
