Investigation of Jet Effects on a Flat Surface Downstream of the Exit of a Simulated Turbojet Nacelle at a Free-stream Mach Number of 1.39 (1956)
NASA Technical Reports Server (NTRS) · leaf 34

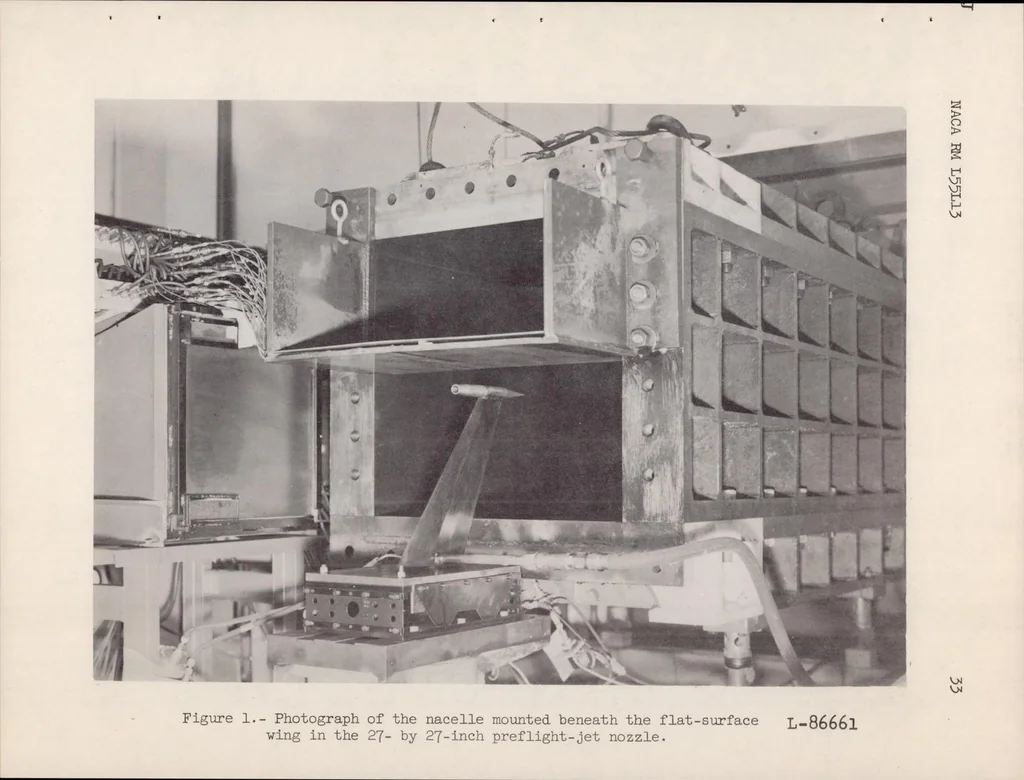

NACA PM L55L13 Figure 1.- Photograph of the nacelle mounted beneath the flat-surface L-86661 wing in the 27- by 27-inch preflight-jet nozzle.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
