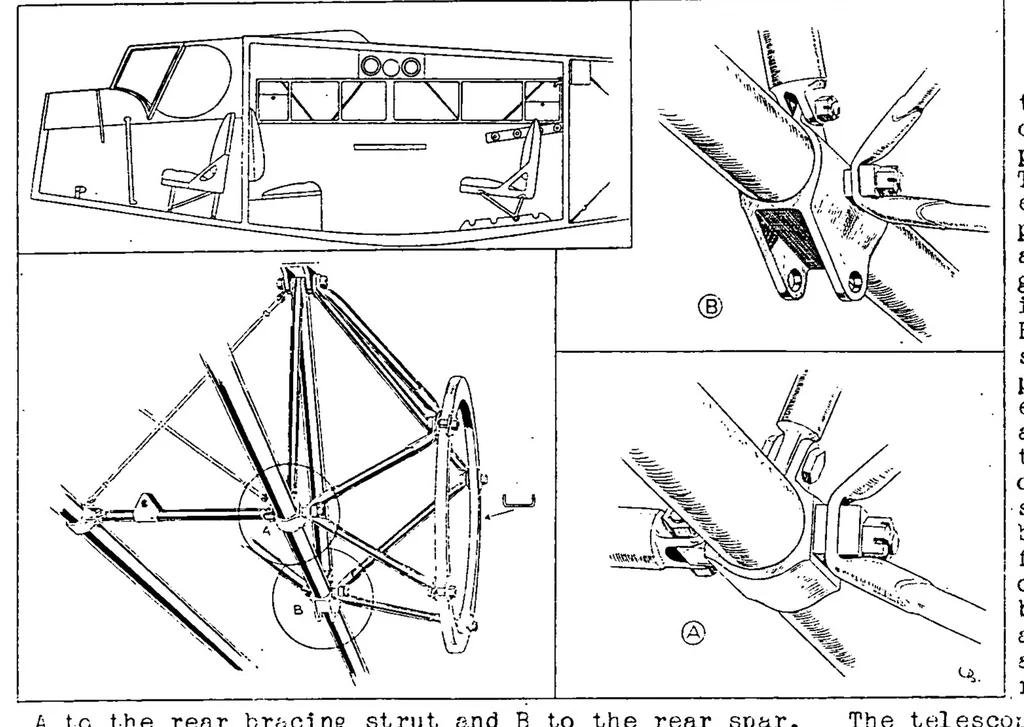

ally Jn the lower left-hand corner, and in perspective in the center of the illustration. In this case the torque tube is dotted. Only three out of the four members of the link gear are shown in these sketches, the fourth being a part of a bracket attached to the front spar, which carries the… … telescopic leg of the A to the rear bracing strut and E to the rear spar. The is shown unoccupied landing gear is also attached to fitting B by the lug which in the sketch.
