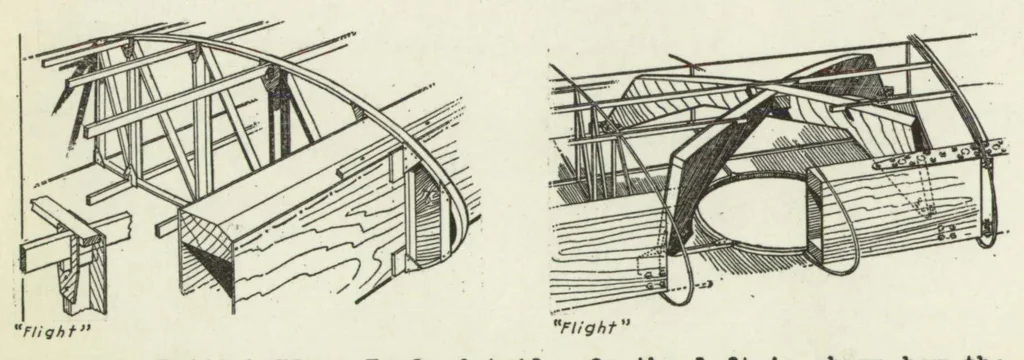

Figs. 4,6 N.A.C.A. Aircraft Ciroular No. 195 Figure 4.-The commodious layout of the cabin of the Klemm Eagle airplane. The back of the seat folds forwards and dis- closes a locker for three large suitoases. … Figure 6.-British Klemm Eagle details. On the left is shown how the spruce ribs are stabilized with stringers and carried over the box spars. The right-hand sketch is a view of the special bracing over that portion of the wing into whioh the landing gear wheel retracts.
