Supermarine S.5 Seaplane (British) : Winner of the 1927 Schneider Cup Race (1928)
NASA Technical Reports Server (NTRS) · leaf 12

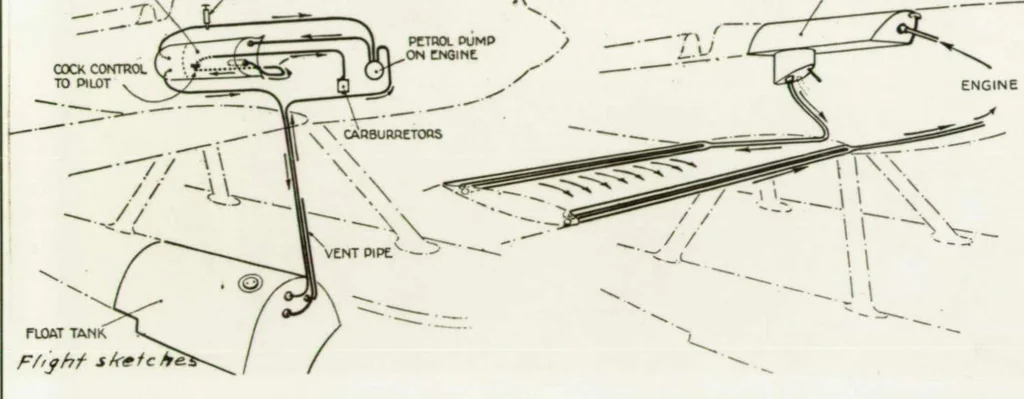

Figs.6,9,10 N.A.C.A. Aircraft Circular No.5? Fig. 6 1, details of rudder and elevator cranks, the latter being offset to clear rudder post. 2, fittings at top of fuselage to which are attached the landing wires. This point sta- bilizes the entire brac- ing system. 3, diagram- mattic view of two… … Fig. 1C 1,water pipes in leading edge of wing from wing radiators. Note gasoline pipes, from float, in strut fairing. 3, water pipes from trailing edge entering fuselage at the wing root. 3, starboard wing root. Note wat- er pipe inside. 4, ietails of float 3trut and gasoline pipes where entering…
