Determining size of drops in fuel mixture of internal combustion engines (1926)
NASA Technical Reports Server (NTRS) · leaf 9

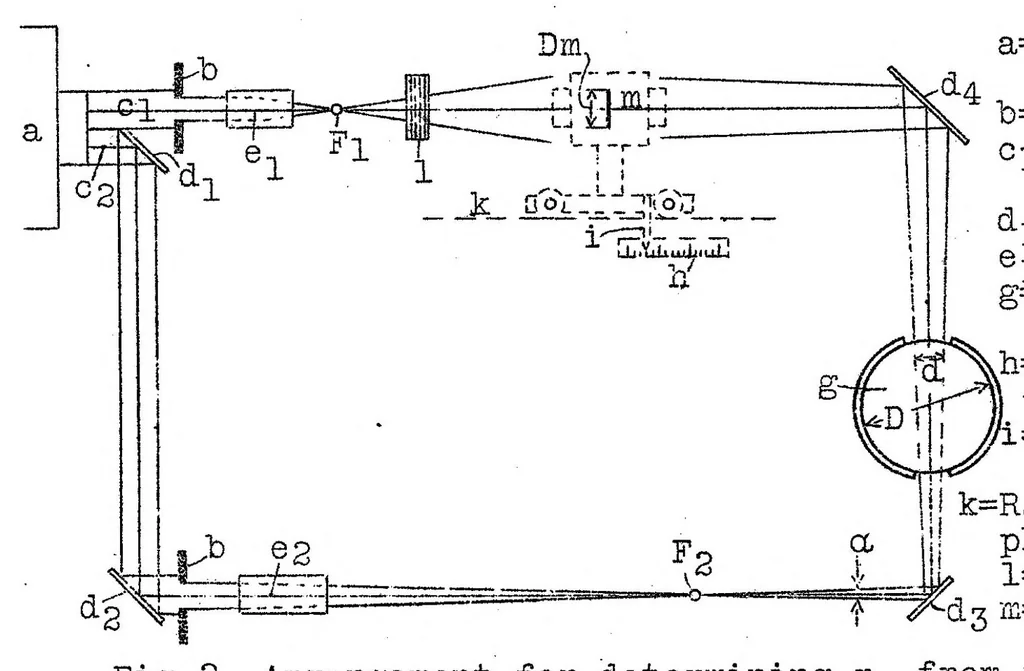

Figs.l & 3. N.A.C.A. Technical Memorandum No.390 Air, conduit a = Air nozzle. b = Atomizing nozzle. c = Grounded safety wire. d = Mixture conduit with receiving vessel. el'e2 ~ GurreIrt switches. f = Voltmeter. g = Series resistance. h = Circuit closer. «s Current Iconductoi i - Short-circuit… … Fig.2 Arrangement for determining rm from the diminution of the light by the drops.
