The Bernard 20 C.1 (French) : a single-seat pursuit monoplane (1929)
NASA Technical Reports Server (NTRS) · leaf 5

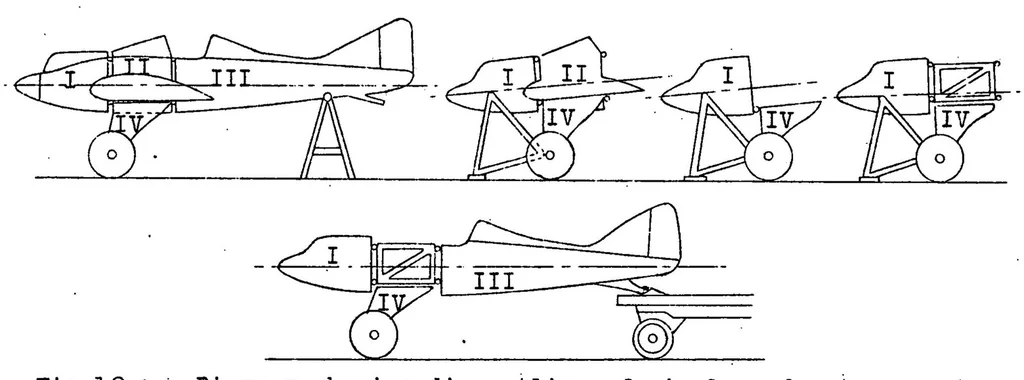

i.A.G.A. Aircraft Circular No.98 Figs.1,18,19. Fig.18 Cut through rear section of fuselage, a, side girder; b, longeron; c, frame; d, longitudinal strip; e, plywood covering. Span 10.80 m (35.43 ft.) Length 7.45 m (34.44 ") Height . 2.50 m ( 8.20 ") -^a^ General arrangement drawing Wing area 16.70… … Fig.19 ■. Diagram showing dismantling of airplane for transporta-^. tion. I, engine block; II, wing and central part of fuselage; III, rear part of fuselage; IV, landing gear; The air- plane being placed in line of flight, the engine block is supported by a special frame, thus enabling the removal…
