Seaplanes Floats and Hulls. Part II (1927)

NASA Technical Reports Server (NTRS) · leaf 41

An illustration from Seaplanes Floats and Hulls. Part II, 1927, leaf 41

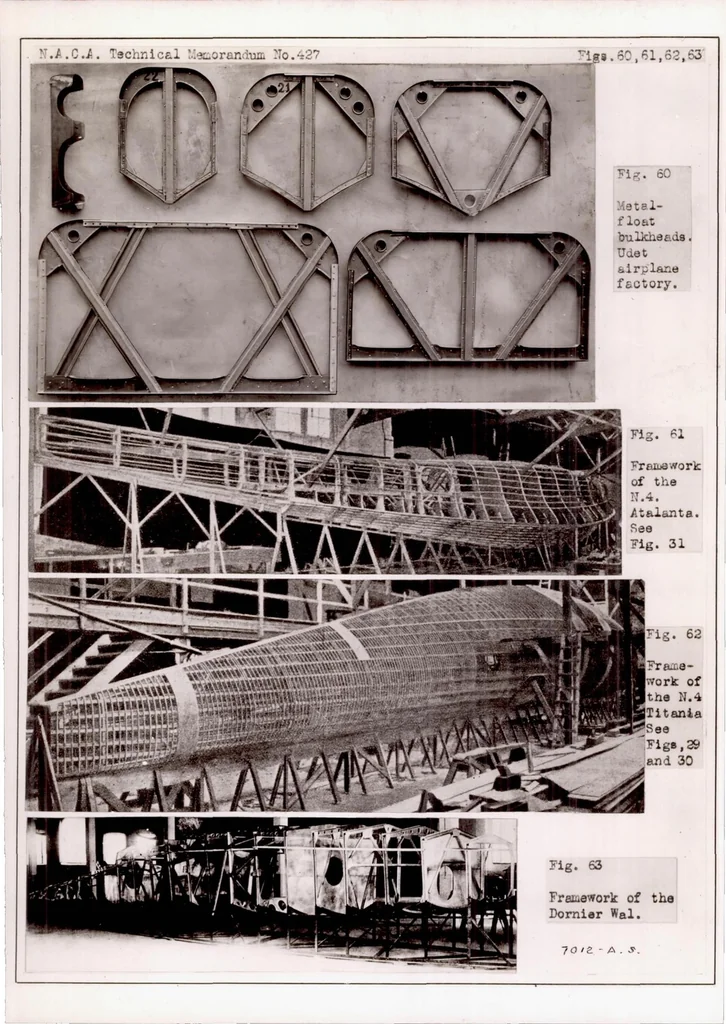

N.A.CJI. Technical Mec lit.60,61,62,63 Fig. 60 Metal- float bulkheads. Udet ai r plane factory. Fig. 61 Framework of the Atal&nta. See Fig, 31 1 ^jfM d Framework of the \ Dornier Wal.
