Effect of stressed covering on strength of internal girders of a wing (1929)
NASA Technical Reports Server (NTRS) · leaf 16

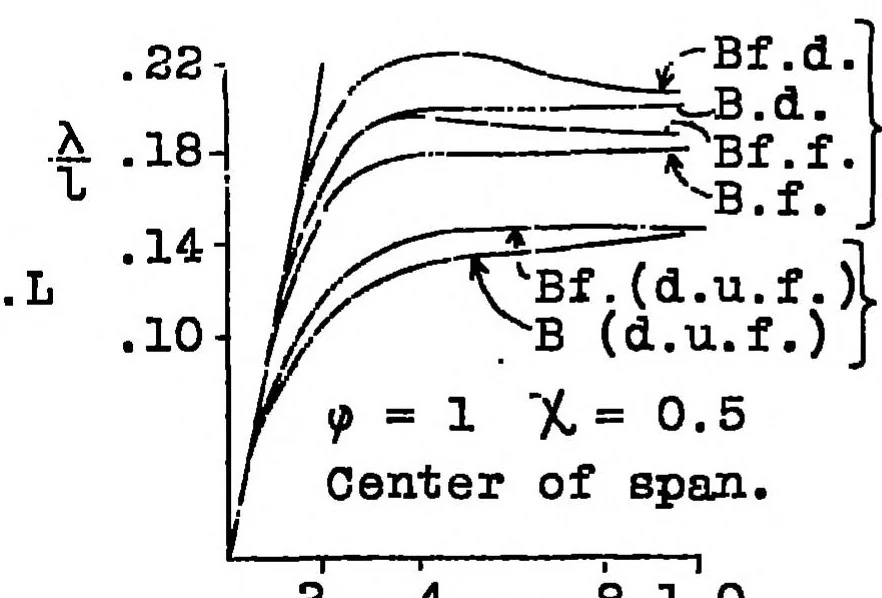

Memorandum 110.503 13 & 14 Bf. = Beam field,B = single girder. d s= Oontinuous girder on an Infinite number of Bupports(span 21). f = Free support,i.e.girder resting on 2 supports(span. 1),the edges, remaining free. gl.L. = Loading through uniformly distributed load. ^. ^ Fig.lOBf.d. E.L. - Loading… … .2 .4 .8 1.0 .2 .4 .8 b. b 1 1 Fig.13 Fig.14NASA Technical Reports Server (NTRS)
