Effect of intake pipe on the volumetric efficiency of an internal combustion engine (1929)
NASA Technical Reports Server (NTRS) · leaf 28

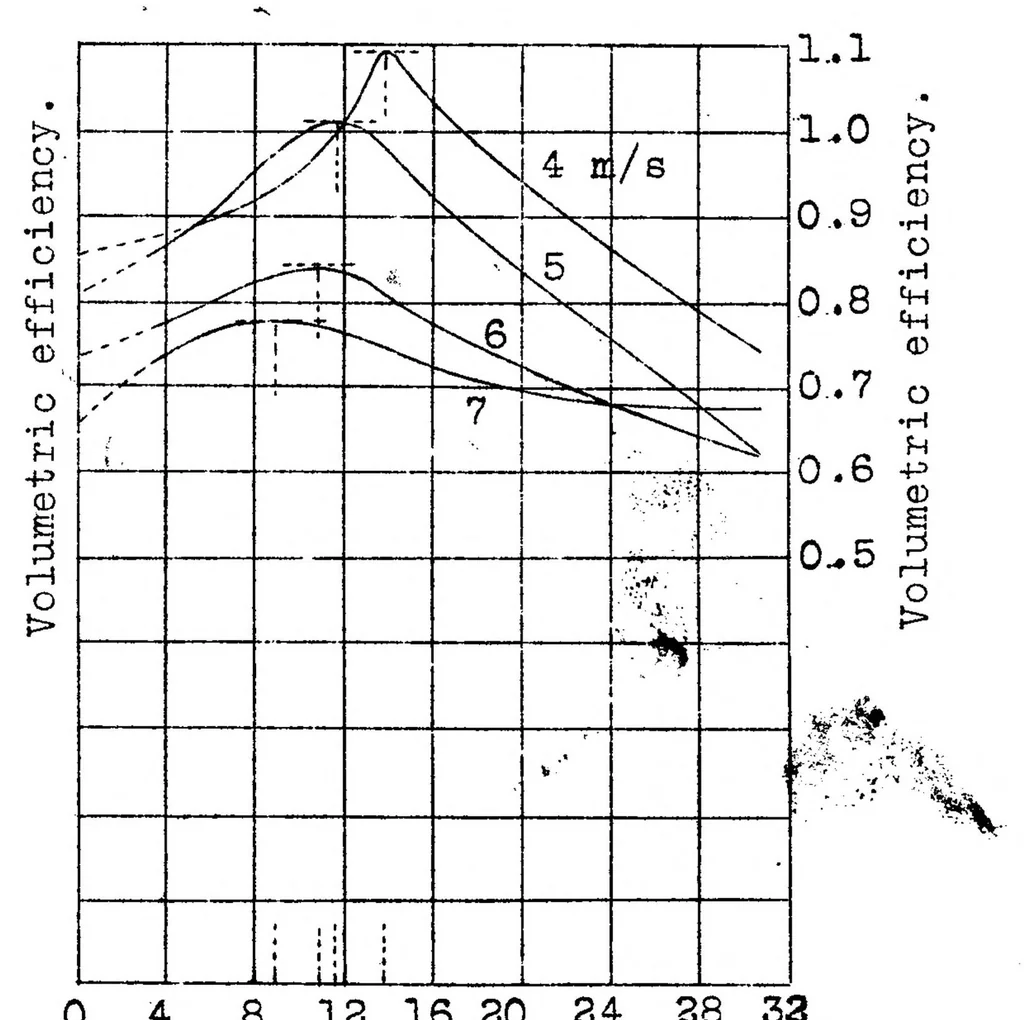

Fig.5,6 N*A,C,A, Technical Memorandum No.501 1,4 1,2 1.0 0 2 4 6 8 10 Ratio of pipe length t(5 piston stroke Fig. 5 … 0 4 8 12 16 20 24 28 32 Ratio of pipe length to piston strok^i Fig-.6NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
