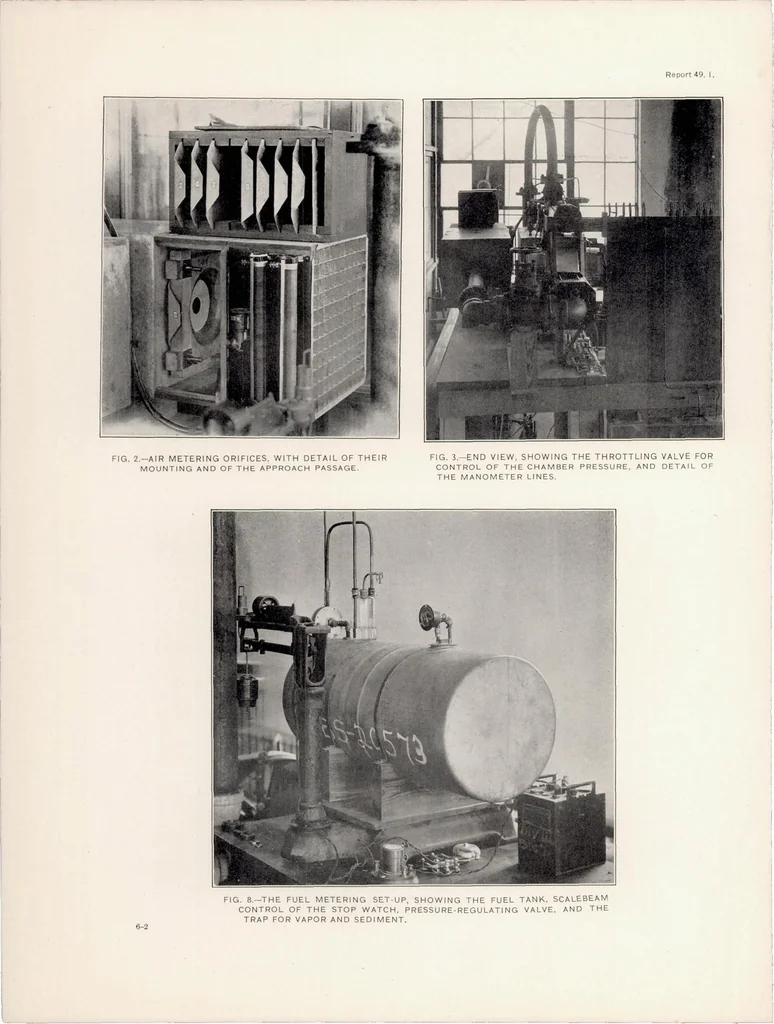

Report 49, I. FIG. 8.—THE FUEL METERING SET-UP, SHOWING THE FUEL TANK, SCALEBEAM CONTROL OF THE STOP WATCH, PRESSURE-REGULATING VALVE, AND THE TRAP FOR VAPOR AND SEDIMENT. 6-2
