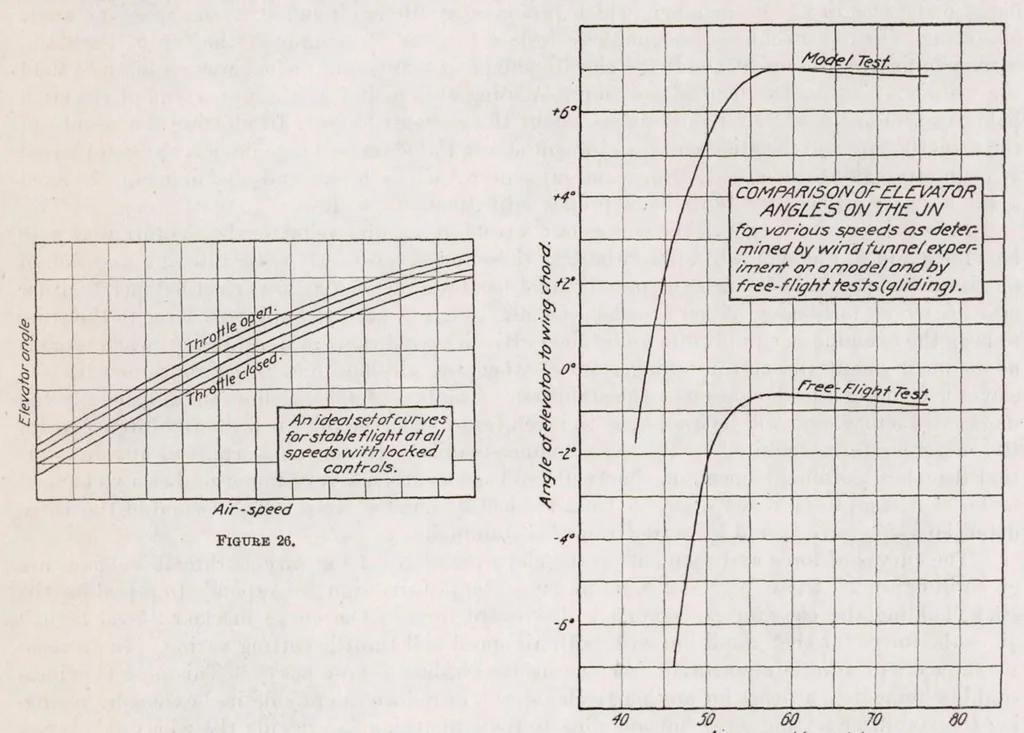

differences between the JN2 and the JN4H are not of a nature which would be expected materially to affect the balance and stability, except that the stabilizer on the former is set at -3° to the wing chord, while that on the latter is at — 2°.3. This accounts for a part, but only a part, of the… … 40 JO 60 70 Air - speed (m p. h.) Figure 27. to the fact that the tail of the model was made up as a flat plate cut from sheet metal and the difference between inclinations of the zero lift lines of the stabilizers in the model and the full- sized machine was therefore much greater than was the…
