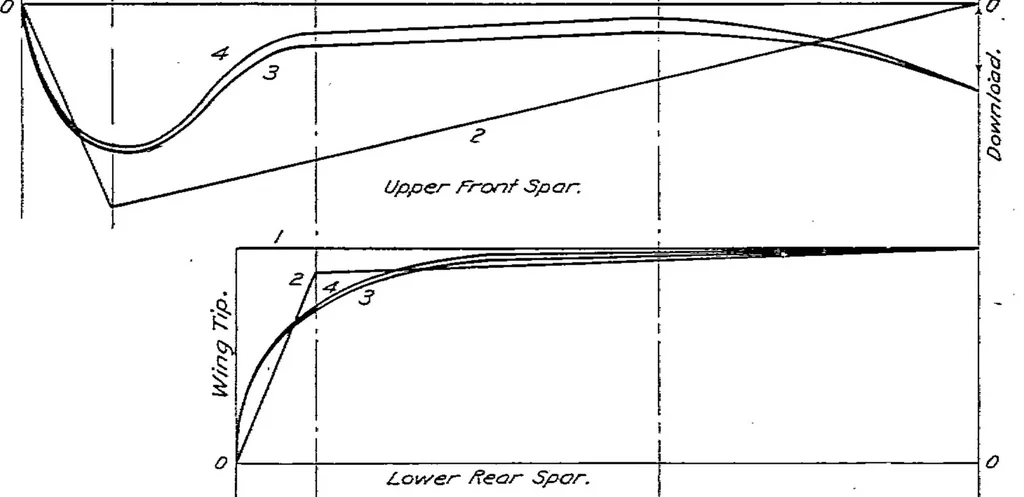

front spar at this angle the calculations are simplified by this assumption) were chosen as a basis for this investigation. The air load for the first approximation was assumed to be uniform over the entire wing span and corresponding to an angle of attack of —0.7°. The reactions at panel points… … Lower /fear Spar. Lower Front Spar. tinuous beam, uniformly loaded, and with points of support in a straight line. The loads parallel and normal to the chord were treated separately. The reactions normal to the chord were each resolved into two components—one parallel to the chord and one in the…
