A High-speed Engine Pressure Indicator of the Balanced Diaphragm Type (1921)
NASA Technical Reports Server (NTRS) · leaf 13

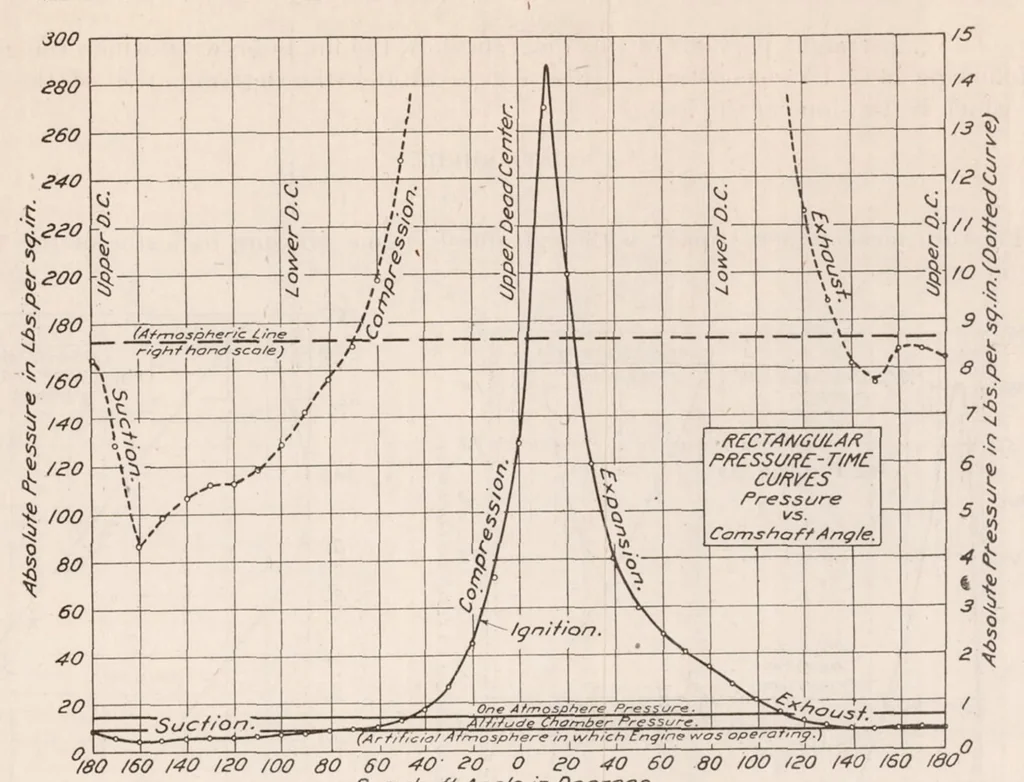

HIGH-SPEED ENGINE PRESSURE INDICATOR OF THE BALANCED DIAPHRAGM TYPE. … so 60 40 ao o ao 40 60 /80 /60 /40 /20 /OO Camshaft Ang/e in Degrees. Fig. 11—Specimen indicator diagram in rectangular coordinates, transformed from figure 9. The diagram is shown by the solid line, the corresponding pressure scale being numbered on the left margin. The portion of the diagram near…
