Point drag and total drag of navy struts no. 1 modified (1923)
NASA Technical Reports Server (NTRS) · leaf 10

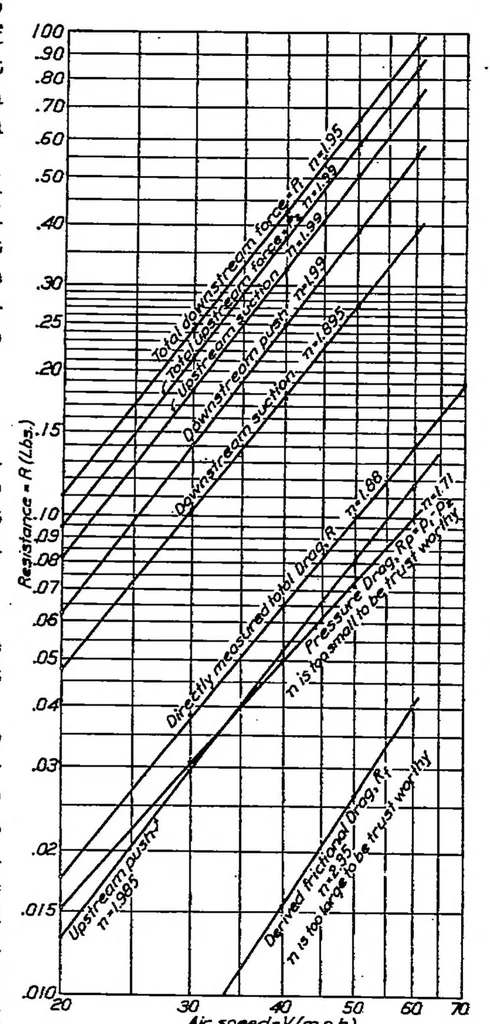

135 POINT DRAG AND TOTAL DRAG OF NAVY STRUTS NO. 1 MODIFIED. DESK RATIO. At 40 miles an hour, and including end effect, the ratio of drag of the major section of the strut to the actual drag on the strut itself is 21.87 for the smaller model, 24.93 for the larger. The drag of the major section was… … 30 40 SO SO TO Air speed' V(mp h) continuously with the air speed Y; closely as V* before the thickest part of the strut, and less nearly Fig. IS.—Total drag and its elements for Navy strata Nos. 2 and 3. at V* farther aft. As usual the nose pressure is ipV; also at all speeds one point of zero…
