Wing spar stress charts and wing truss proportions (1926)
NASA Technical Reports Server (NTRS) · leaf 4

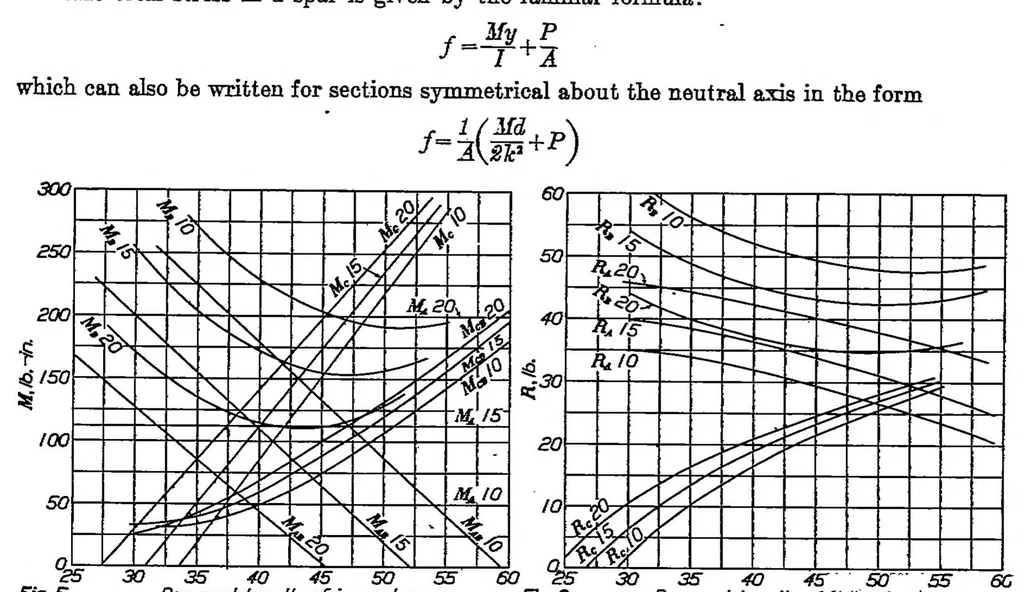

determined by comparing the figures for complete fixity and complete freedom and taking an intermediate value. In addition to facilitating the calculation of bending moments and reactions, such charts serve as the basis for calculations of total stress and for a study of the effect of a change in… … fig. 5 Percent length of inner boy Fig. 6 Percent length of inner bay
