Spray Penetration with a Simple Fuel Injection Nozzle (1926)
NASA Technical Reports Server (NTRS) · leaf 9

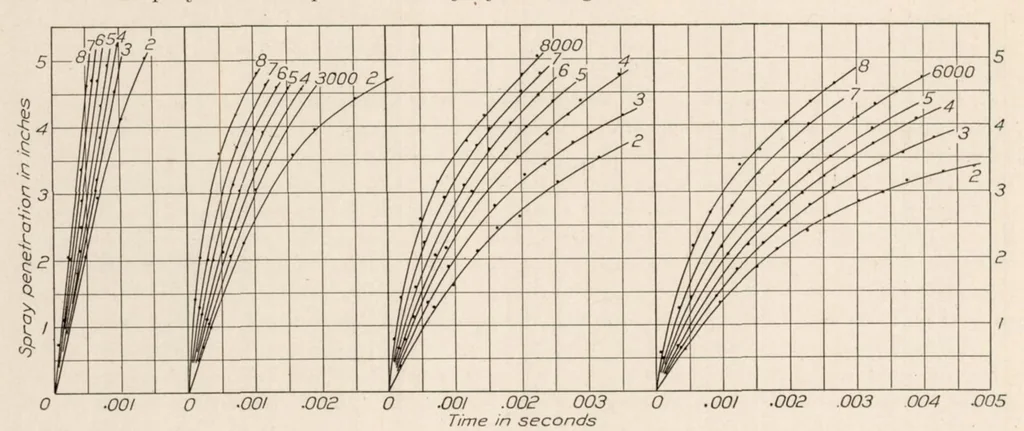

6 REPORT NATIONAL ADVISORY COMMITTEE FOR AERONAUTICS data for figures were taken from a single series of photographs, these were checked by additional photographs and were shown to be representative. The data given by Figure 15, showing the effect of fuel pressure on spray tip velocity, were… … Time in seconds Fig. 12. Fig. ii. Fig. 10. Fig. 9. Chamber pressure, 300 Chamber pressure, Chamber pressure, 100 Chamber pressure, at- lb./sq. in. gauge. Fuel 200 lb./sq. in. gauge. lb./sq. in. gauge. Fuel mospheric. Fuel pressure, 2,000 to Fuel pressure, 2,000 pressure, 2,000 to 8,000 pressure,…
