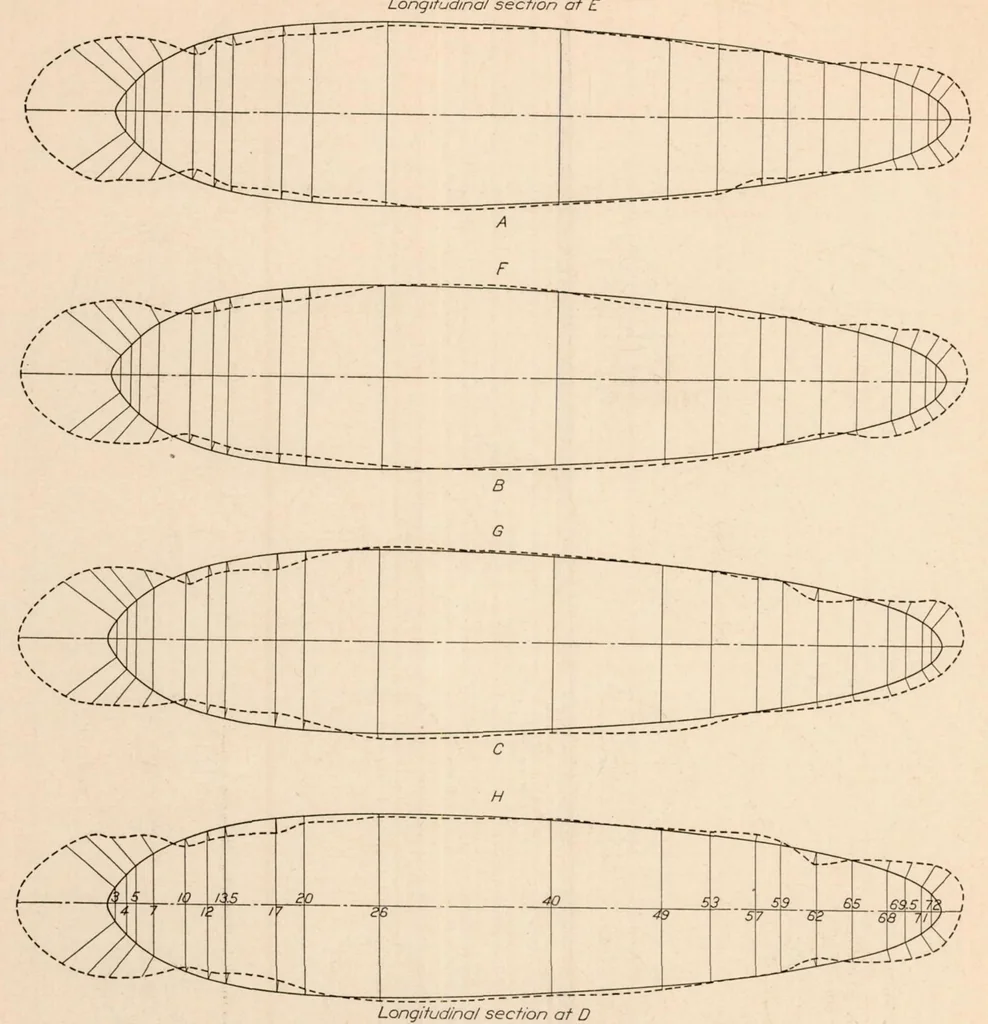

34 REPORT NATIONAL ADVISORY COMMITTEE FOR AERONAUTICS Longitudinal section at E … Longitudinal section at D Positive pressure plotted outside, negative pressure inside, of contour ESEP ■30 6r ■20 4-- 10 a- ■ 0 o- Section at station 17 Section at station 26 Section at station 59 looking oft looking oft looking aft Fig. 19—Pressure distribution on envelope. Run 4, steady circle.…
