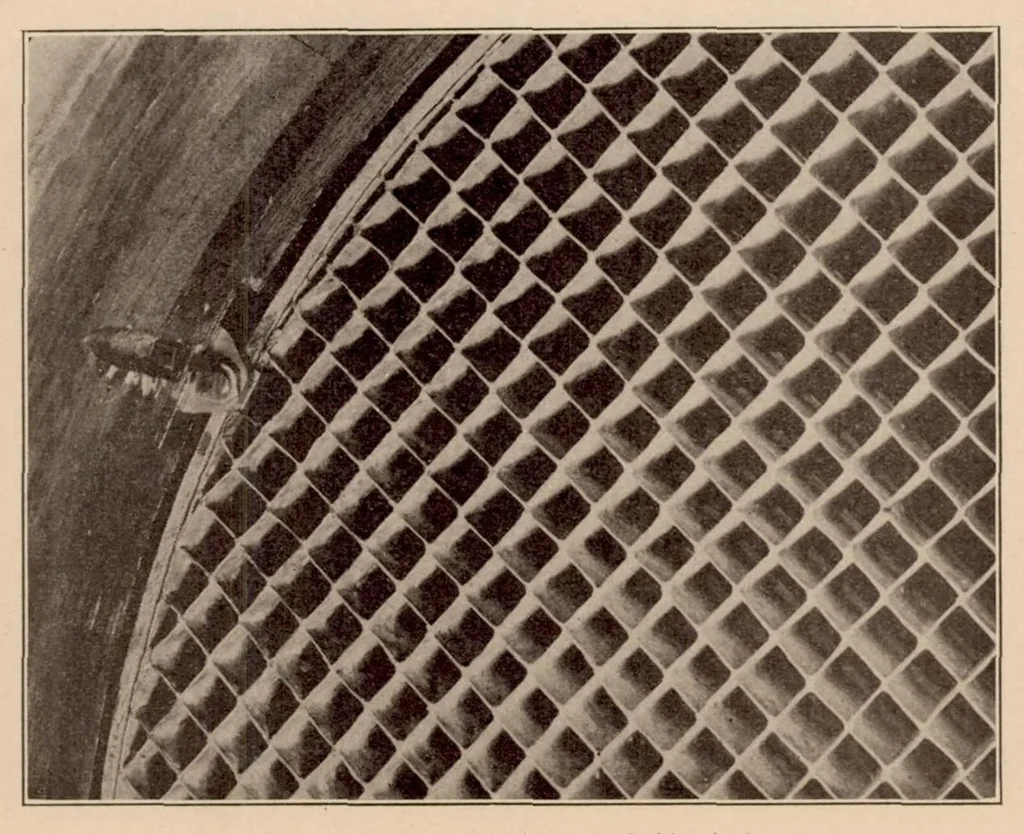

1.75 millimeters) square cells. The latter honey- {24.33 m) -82'- A-Auto transformers F-Terminal board K-Switch board P,-Primary compressor No. I B-Booster compressor G-Motor-generator set L-Desk P2-Primory compressor No.B. Ct-Inter-cooler H-Peep-hole M-Drive motor Q-Door After-cooler 1-Intake… … Fig. 5.—Honeycomb (HA) showing locking device comb is made removable to permit access to the experiment section; it is suspended from a removable trolley track by which it may be rolled to one side of the entrance cone. In order that the honeycomb may be returned to exactly the same place each…
