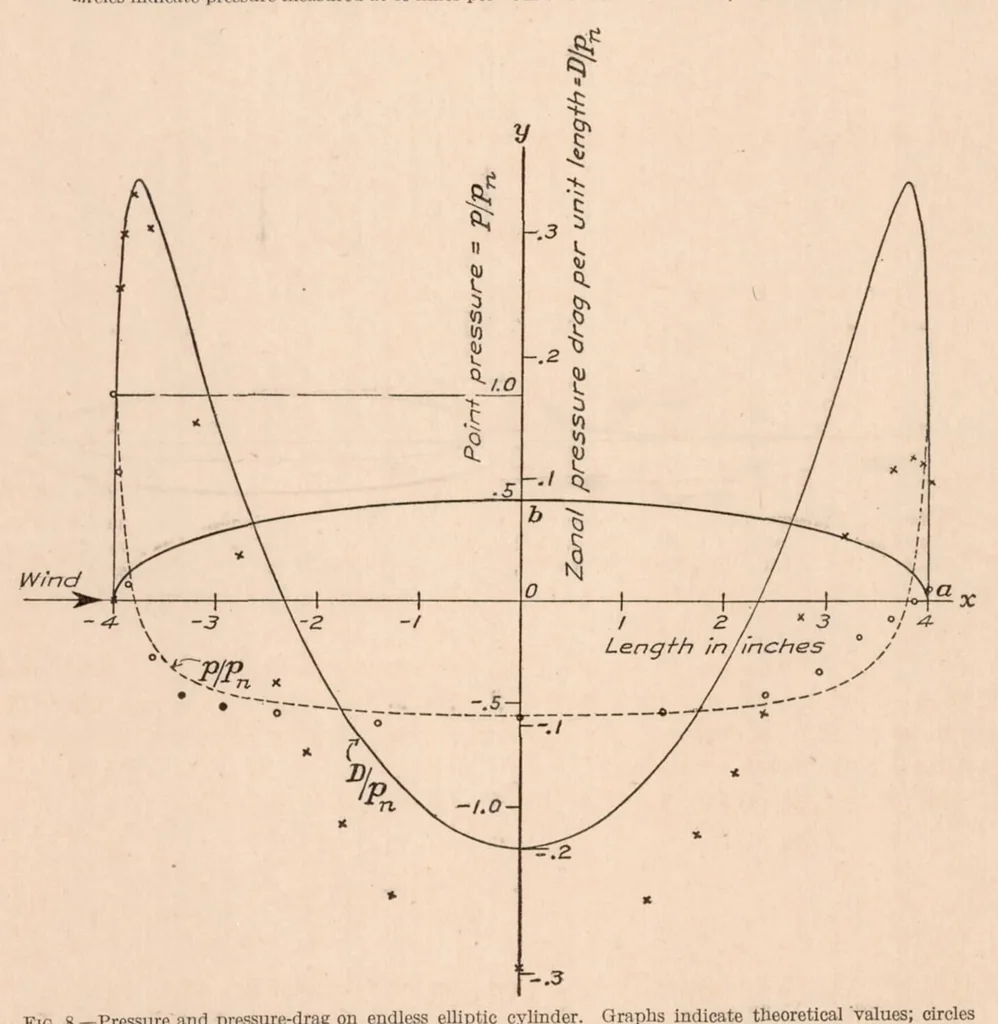

9 FLOW AND DRAG FORMULAS FOR SIMPLE QUADRICS It rises from 0 at the nose to its maximum where whose graph, for a/6 =4, appears in Figure 8. p = 0, then falls to its minimum amidships. t—r~ 6 p 10 l- W/nd - Length in inches -Velocity and pressure along axes and over surface of endless elliptic… … Fig. 8.—Pressure and pressure-drag on endless elliptic cylinder. Graphs indicate theoretical values; circles indicate pressure p/p» measured at 40 miles per hour; crosses indicate pressure-drag D/pn computed from measured pressure Whatever the value of a/b, the whole pressure on the front half is…
