Pressure Distribution over a Wing and Tail Rib of a VE-7 and of a TS Airplane in Flight (1928)

NASA Technical Reports Server (NTRS) · leaf 12

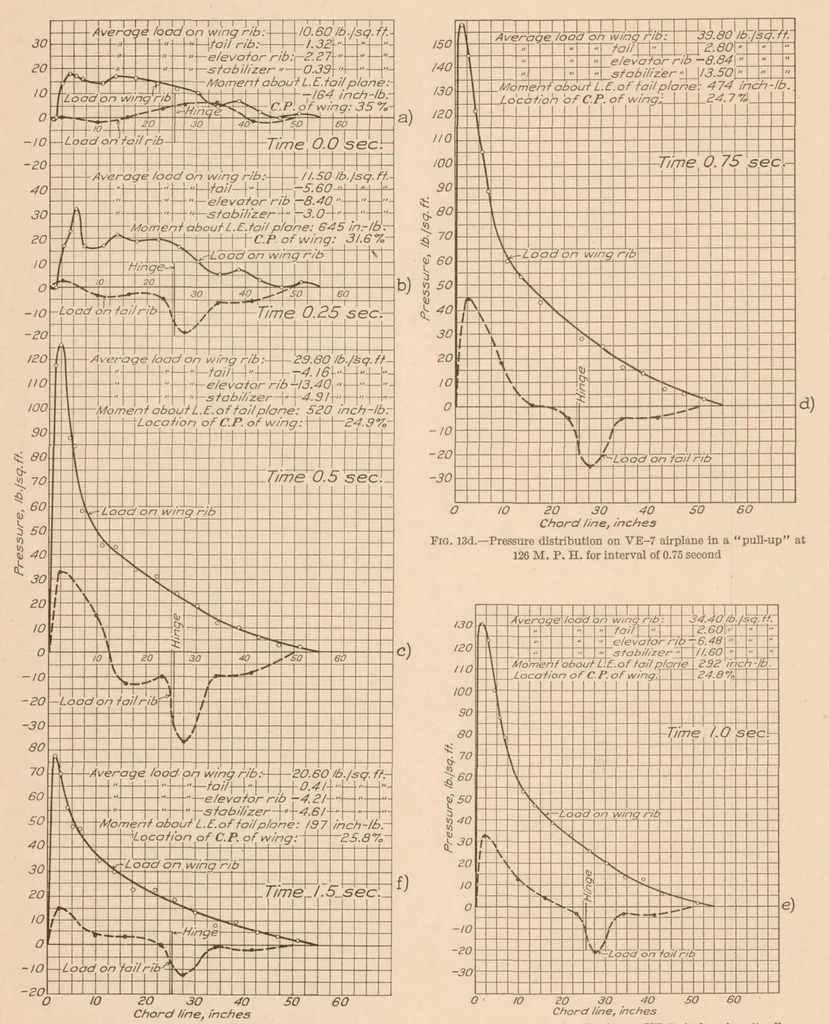

An illustration from Pressure Distribution over a Wing and Tail Rib of a VE-7 and of a TS Airplane in Flight, 1928, leaf 12 — PRESSURE DISTRIBUTION OF AN AIRPLANE IN PLIGHT 11 … Chord line, inches Chord line, inches Fig. 13e—Pressure distribution on VE-7 airplane in a "pull- Fig. 13a, b, c, and f.—Pressure distribution on a VE-7 airplane in i up" at 126 M. P. H. for interval of 1.0 second "pull-up" at 126 M. P. H. for various intevals of time
