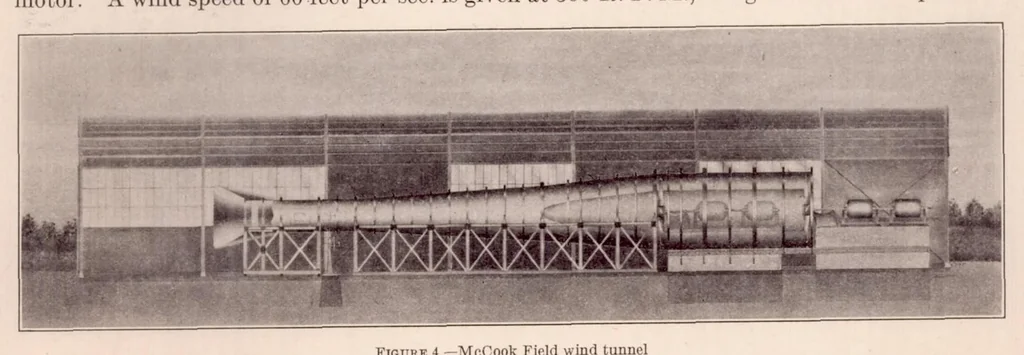

te of Technology wind tunnel mouth by 20 feet in length, and a straight tapered exit cone with a maximum diameter of 14 feet 3 inches and a total length of 46 feet. The honeycomb, which is located approximately midway in the entrance cone, is built up from tapered tubes 3 inches in diameter by 14… … Figure 4.—McCook Field wind tunnel McCOOK FIELD: The 5-foot tunnuel used in these tests has a cylindrical test section IS feet long, a flared intake 10 feet in diameter by 11.25 feet in length, and a 2-piece exit cone 14 feet maximum diameter by 68 feet over-all length. The exit cone has a straight…
