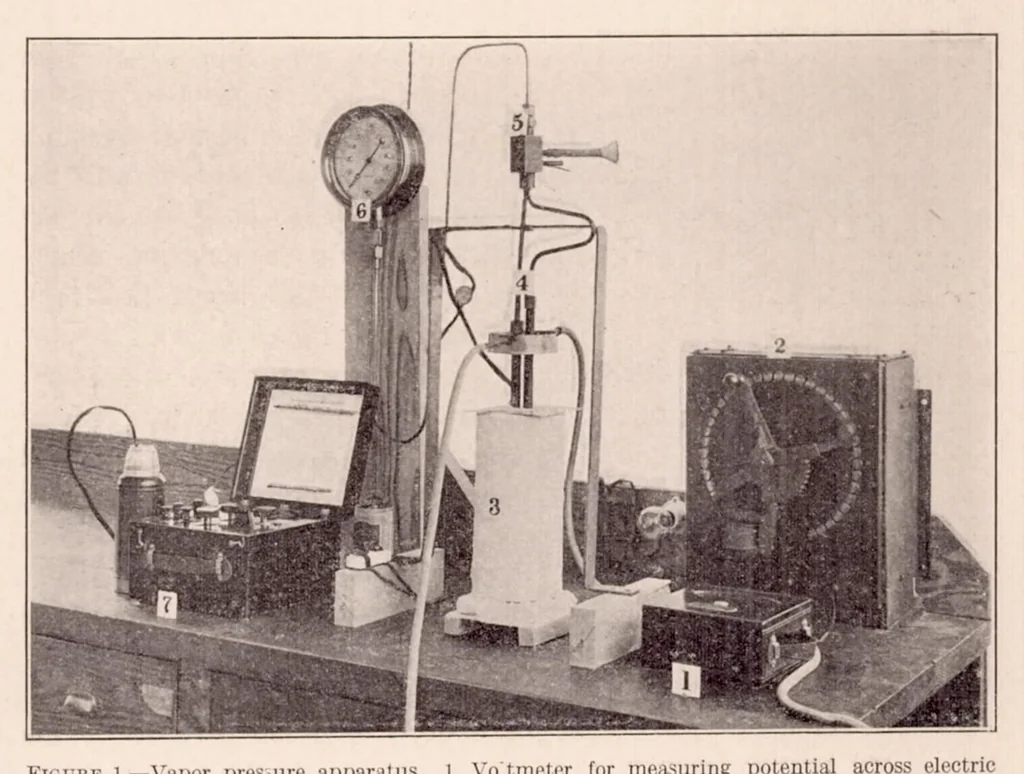

rmocouple, and a potentiometer. The steel bomb was made from a piece of 1%-inch diameter chrome-nickel steel 5^ inches long. A well for holding the fuel and its vapor was drilled in the bomb slightly off center to a depth of 43^ inches. Two small holes were drilled into this well from the other end… … Figure 1.—Vapor pressure apparatus. 1. Voltmeter for measuring potential across electric the efficient cleaning of the furnace. 2. Rheostat for regulating potential across electric furnace. 3. Electric furnace containing bomb. 4. Cooling pan. 5. Valve block. 6. Bourdon pressure gauge. 7. Po- bomb,…
