Flight Tests on U.S.S. Los Angeles. Part I : Full Scale Pressure Distribution Investigation (1930)
NASA Technical Reports Server (NTRS) · leaf 33

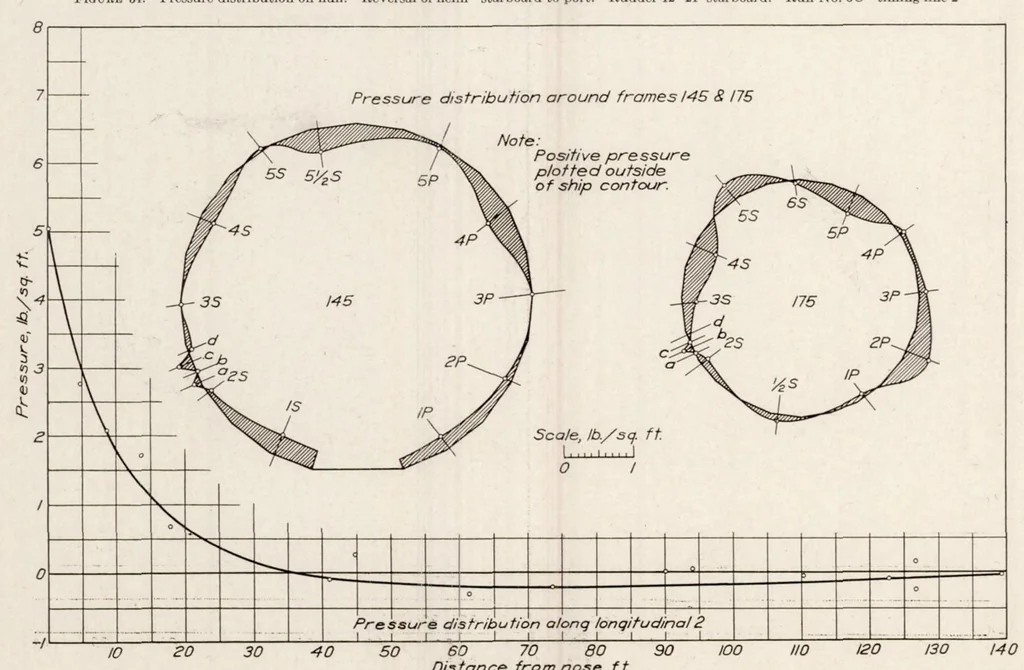

I 32 REPORT NATIONAL ADVISORY COMMITTEE FOR AERONAUTICS 10 20 30 ^O 50 60 70 80 90 100 110 120 130 140 Distance from nose, ft Figure 34.—Pressure distribution on hull. Reversal of helm—starboard to port. Rudder 12° 21' starboard. Run No. 3C—timing line 2 … Distance: from nose, ft Figure 35.—Pressure distribution on hull. Reversal of helm—starboard to port. Rudder 6° 30' port. Run No. 3C—timing line 3H
