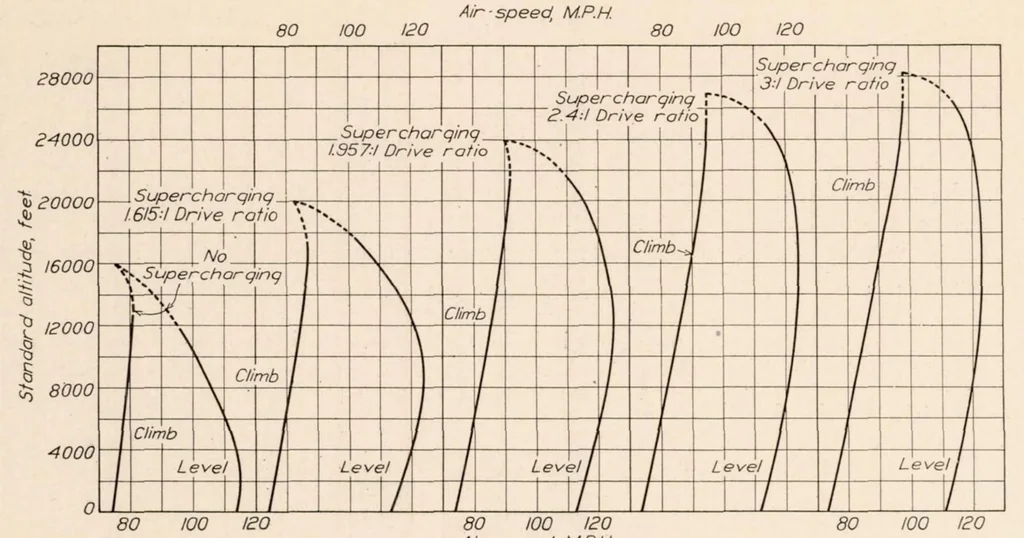

8 REPORT NATIONAL ADVISORY COMMITTEE FOR AERONAUTICS calibration and have been corrected to standard atmosphere. Data at the low altitudes were somewhat scattered and the curves have been faired in this range. The curves of power to Air speed, M.P.H. … 80 100 180 80 100 120 80 100 120 Air speed, M.P.H. Figure 3—Air speeds of DH4-M2 airplane in climb and in level flight with no supercharging and with four supercharging capacities drive the supercharger during climb, shown on the same sheet, were drawn from data obtained during previous laboratory…
