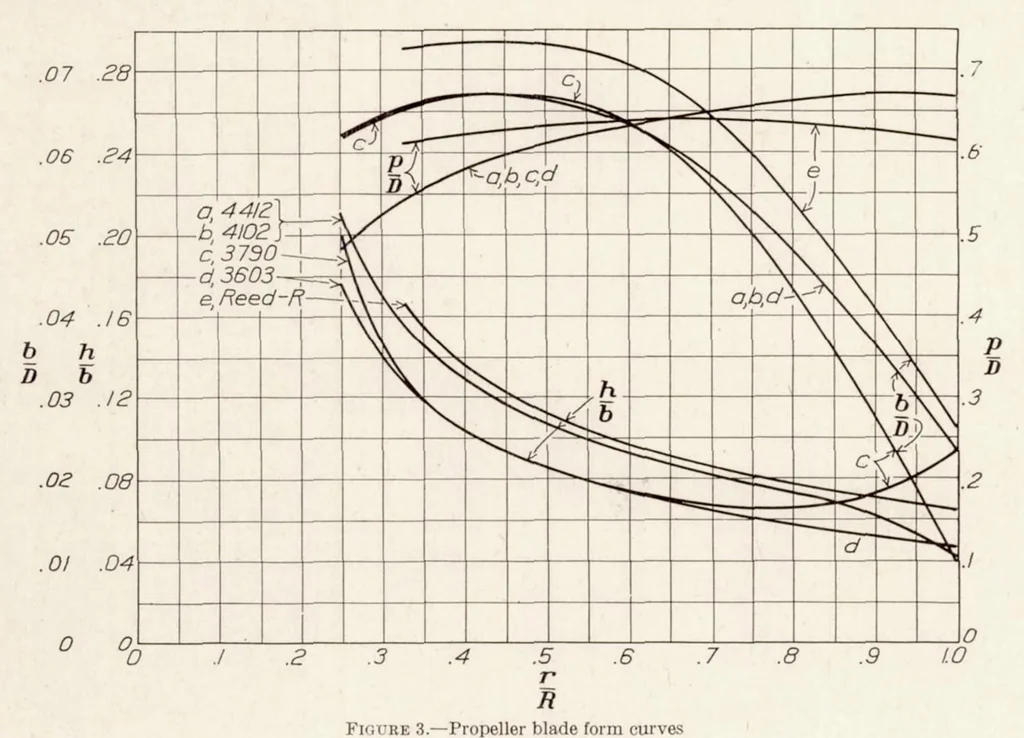

ip; thick blade; direct drive. similar to No. 4102 in every respect, except that they No. M-1826, Curtiss Drawing X-33525-69: 9 both fit the same hub, which is unimportant aero- feet diameter; Reed-R type; direct drive. dynamically. The same steel hub was used for all of the detachable All of the… … Figure 3—Propeller blade form curves Figure 4. The Reed-R type propeller, however, had although the designed propeller diameters were 9 feet sections based on the ('lark Y, but somewhat thickened and 10 feel 6 inches, they were actually 8 feet 11 inches at the trailing edge. An approximate contour…
