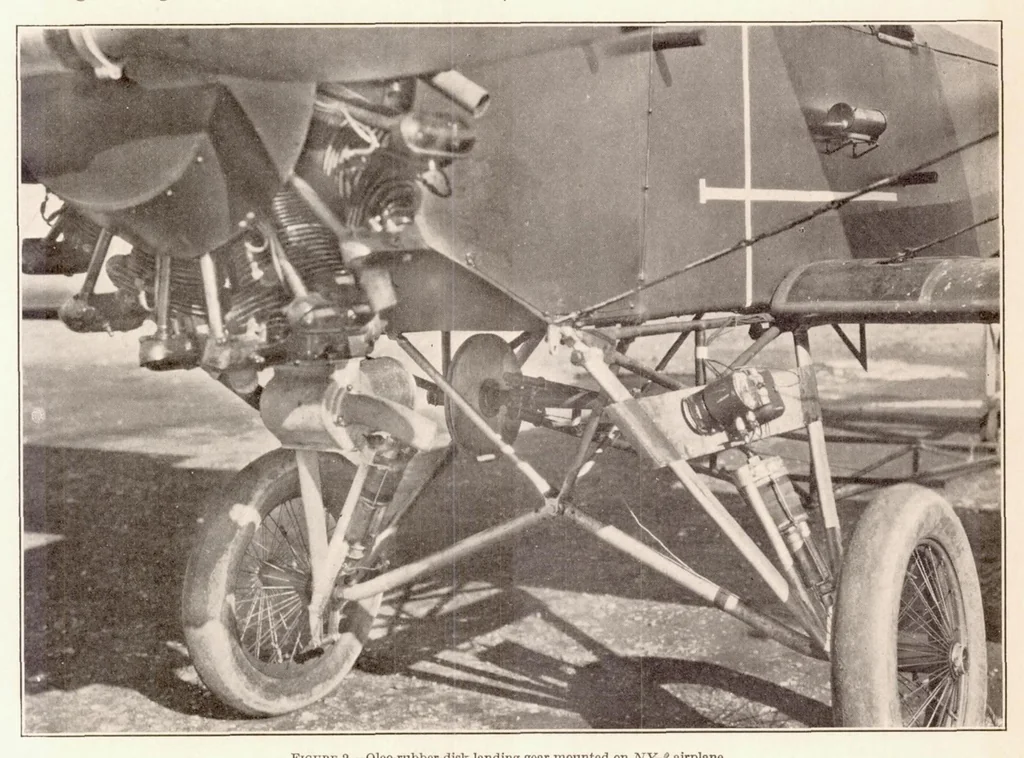

h 4% mately 9,600 pounds had been reached. After the inches outside diameter, 1% inches inside diameter, application of each increment, measurements were and inches thick. Metal spacers were used be- made of the vertical displacement of the center of the tween the second and third disks. load, the… … Figure 2.—Oleo-rubber-disk landing gear mounted on NY-2 airplane disks. In addition, measurements of the geometric between these structures was restrained by 34 wraps of relations of the members of the landing-gear chassis %-inch rubber shock cord. These cords and the tires were made. During the…
